Diagnosis Code of Freeze Frame Data
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

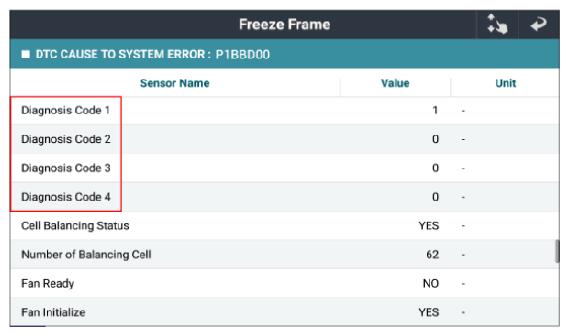

Table1 Fig.1 |
DIAGNOSTIC CODE DESCRIPTION
| Classification | Diagnostic Code | Remark |
|---|---|---|
| Save data when DTC sets | Diagnosis Code 1 = OPD active | Check comments for further information |
| Diagnosis Code 2 = OPD power voltage (x0.1)[V] |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. Repair or replace as necessary and then Go to "Verification Of Repair " procedure.
No Good
- Replace the battery pack and go to "WIRING INSPECTION ".
