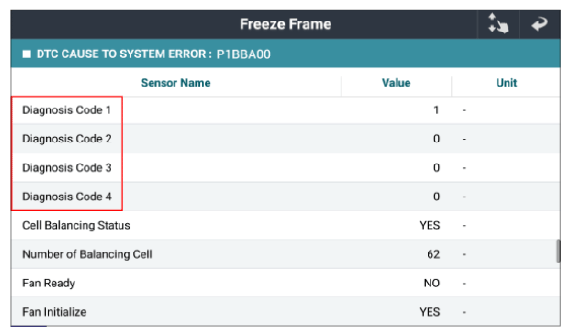

Diagnosis Code of Freeze Frame Data
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|
Table1 Fig.1 |
DIAGNOSTIC CODE DESCRIPTION
| Classification | Diagnostic Code | Remark |
|---|---|---|
| Save data when failure occurs | Diagnosis Code 1 = Status before OPD diagnosis is confirmed | [16] Main relay "OFF" [32] Over voltage status "ON" [48] Over voltage status "ON" & Main relay "OFF" |
| Diagnosis Code 3 = Status after OPD diagnosis is confirmed |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. Repair or replace as necessary and then Go to "Verification Of Repair " procedure.
No Good
- If no problems were found with the circuits or connectors, replace the hybrid battery pack and Go to "Verification Of Repair " procedure.
