Inverter (+) and (-) CAP Capacity Inspection
- Ignition "OFF".
- Disconnect the auxiliary battery (-) connector.
- Remove the safety plug, and check that the high voltage terminal voltage is less than 30V.
- Disconnect the inverter connectors.

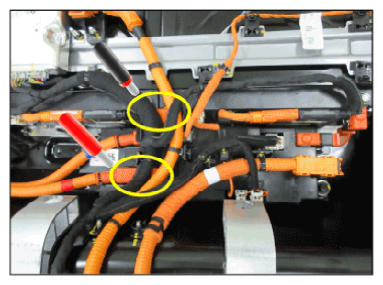

- Set the multi-meter to CAP measuring setting.
- Monitor specification below.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Inverter | (+) | Inverter | (-) | Approx. 580μF |
Good
- Go to "A/C COMPRESSOR CAPACITY INSPECTION " procedure.
No Good
- If no problems were found with the circuits or connectors, replace the HPCU and Go to "Verification Of Repair " procedure.
