Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON"
 ■SOC calibration
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of BMS system.
 Fig.1 to 4
  1. Ignition "ON", EV mode "ON".
 ■Engine test on
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of HCU system.
 Fig.5 to 9

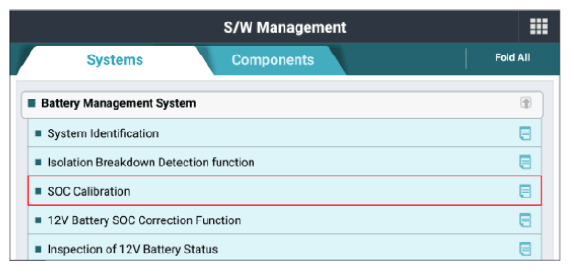

G14968960Courtesy of KIA MOTORS AMERICA, INC.

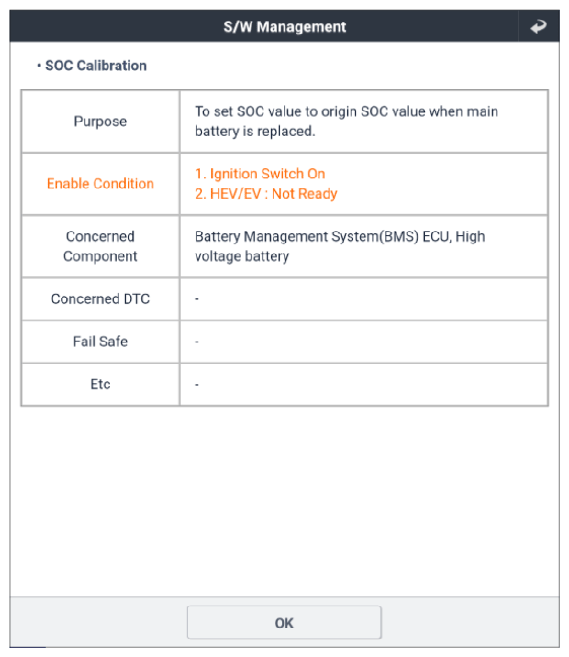

G14968961Courtesy of KIA MOTORS AMERICA, INC.

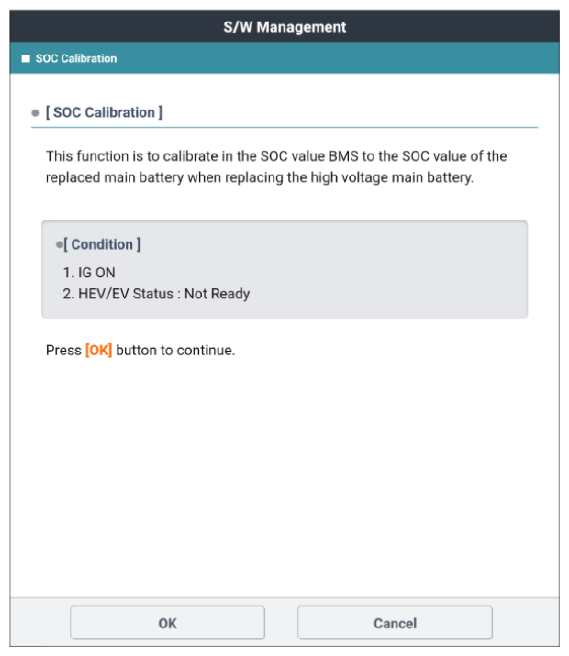

G14968962Courtesy of KIA MOTORS AMERICA, INC.
G14968963Courtesy of KIA MOTORS AMERICA, INC.

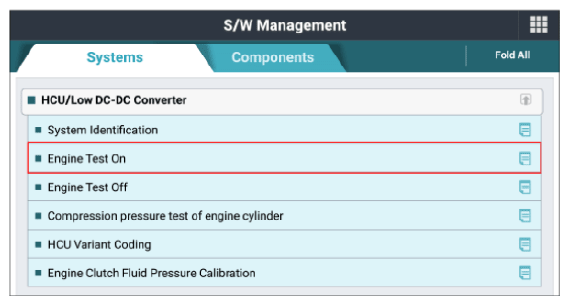

G14968964Courtesy of KIA MOTORS AMERICA, INC.

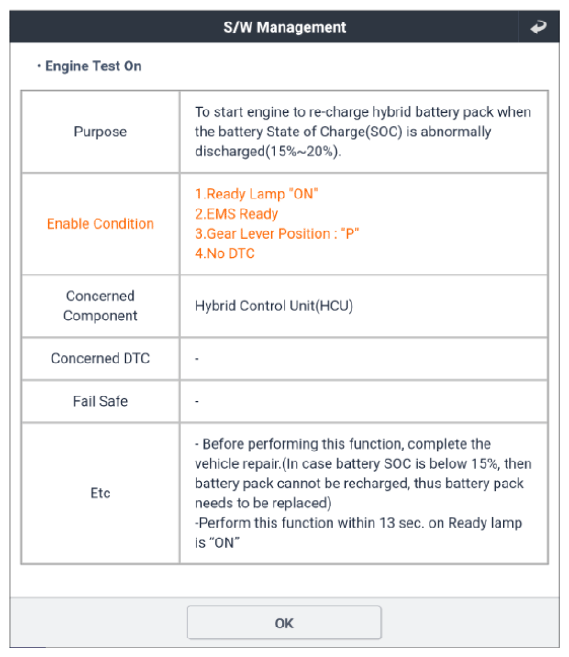

G14968965Courtesy of KIA MOTORS AMERICA, INC.

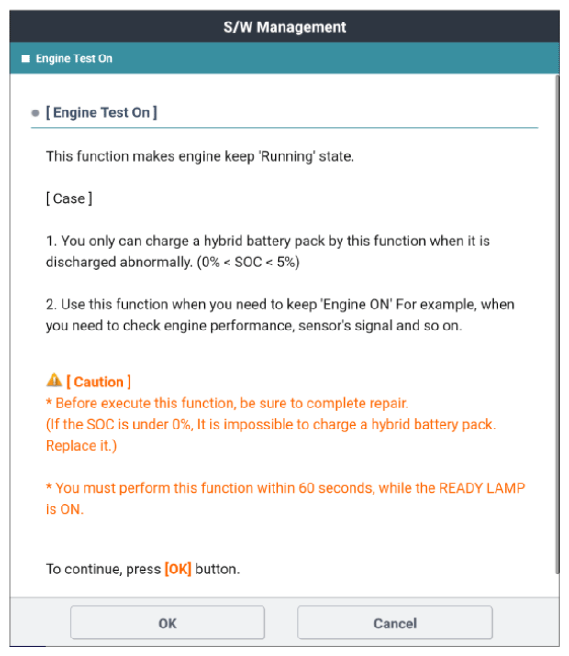

G14968966Courtesy of KIA MOTORS AMERICA, INC.

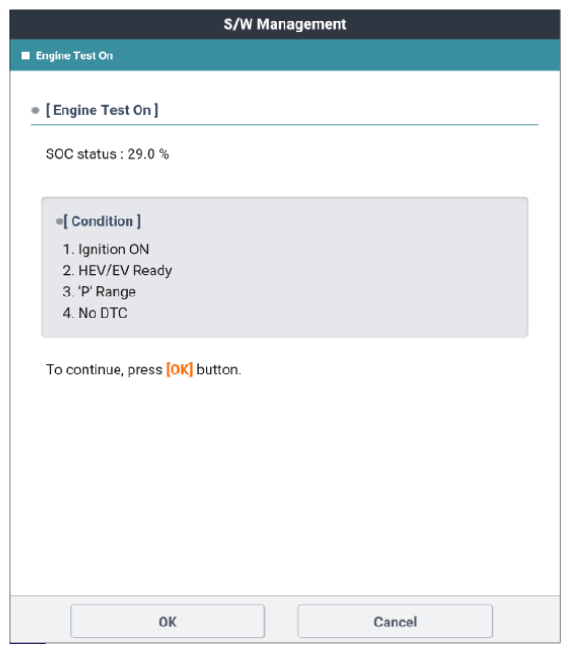

G14968967Courtesy of KIA MOTORS AMERICA, INC.

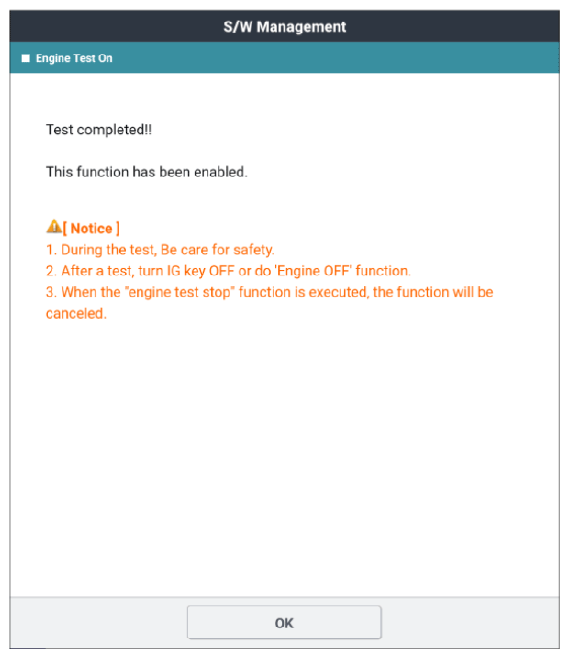

G14968968Courtesy of KIA MOTORS AMERICA, INC.
