Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
  • When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
  • When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
  1. Remove the rear door body side weatherstrip.

    (Refer to Rear Door - "REAR DOOR SIDE WEATHERSTRIP ")

  2. Remove the luggage side trim.

    (Refer to Trunk trim - "LUGGAGE SIDE TRIM ")

  3. Remove the second row seat belt upper anchor cover (A).

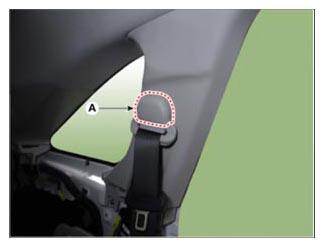

    G14940201Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the second row seat belt upper anchor (A).

    Tightening torque:

    39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb.ft)

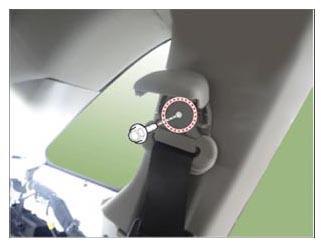

    G14940202Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the rear pillar trim (A) after removing the mounting bolt.

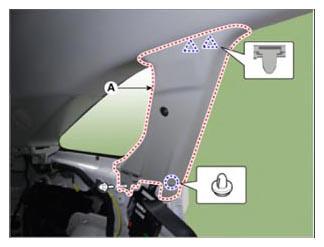

    G14940203Courtesy of KIA MOTORS AMERICA, INC.
