Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
  • When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
  • When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
  1. Remove the front pillar trim.
    1. To remove the front pillar trim, the fastener remover (A) below must be used.
      G14940193Courtesy of KIA MOTORS AMERICA, INC.

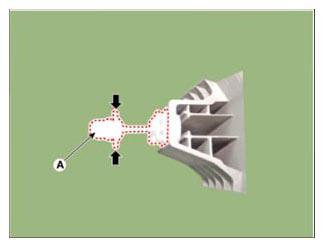

    2. After slightly lifting up the front pillar trim and putting the tool in, remove the mounting clip (A) by pulling it.
      G14940194Courtesy of KIA MOTORS AMERICA, INC.
    1. NOTE:
      • Be sure to replace the existing clips with new ones when removing or replacing the front pillar trim.
      • Remove the screw, remove the cap, and replace the mounting clip (A).
      G14940195Courtesy of KIA MOTORS AMERICA, INC.

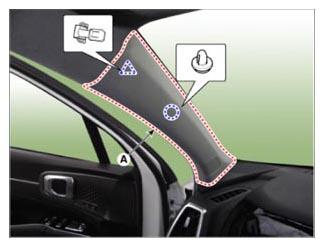

    2. Remove the front pillar trim (A).
      G14940196Courtesy of KIA MOTORS AMERICA, INC.
