Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
  • When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
  • When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
  1. Remove the front door scuff trim.

    (Refer to Interior Trim - "FRONT DOOR SCUFF TRIM ")

  2. Remove the hood latch release handle.

    (Refer to Hood - "HOOD LATCH RELEASE HANDLE ")

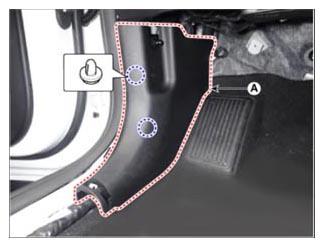

  3. Remove the cowl side trim (A) by using a flat-head screwdriver or remover.
    G14940205Courtesy of KIA MOTORS AMERICA, INC.
