Center Pillar Lower Trim

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door scuff trim.

    (Refer to Interior Trim - "FRONT DOOR SCUFF TRIM ")

  2. Remove the rear door scuff trim.

    (Refer to Interior Trim - "REAR DOOR SCUFF TRIM ")

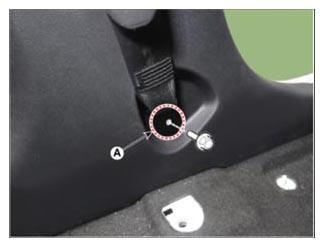

  3. Remove the front seat belt lower anchor (A) by removing the mounting bolt.

    Tightening torque:

    39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb.ft)

    G14940198Courtesy of KIA MOTORS AMERICA, INC.

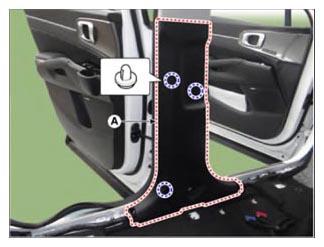

  4. Remove the center pillar lower trim (A) by caution not to damaged clip.
    G14940199Courtesy of KIA MOTORS AMERICA, INC.
