Repair Procedures: Removal: Notes

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
  • When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
  • When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
  1. Remove the console upper cover.

    (Refer to Floor Console - "CONSOLE UPPER COVER ")

  2. Remove the floor console tray (A) by removing the mounting screws.

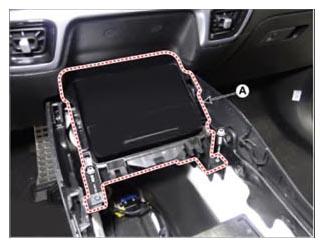

    G14940120Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connectors (A).

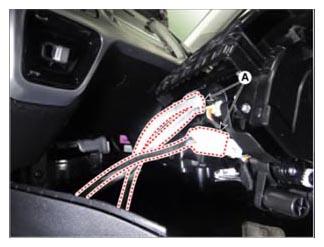

    G14940121Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the floor console side cover (A) by using a flat-head screwdriver or remover

    [LH]

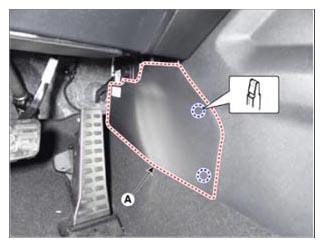

    G14940122Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

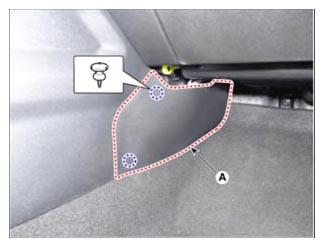

    G14940123Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the storage box tray (A).

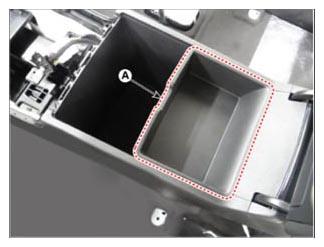

    G14940124Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the storage box pad (A).

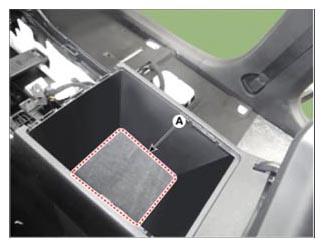

    G14940125Courtesy of KIA MOTORS AMERICA, INC.
  7. Disconnect the console main connector (A).

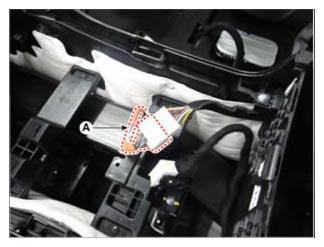

    G14940126Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the floor console assembly (A) by removing the mounting screws and bolts.

    Tightening torque:

    6.9 - 9.8 N-m (0.7 - 1.0 kgf.m, 5.0 - 7.2 lb.ft, 60.7 - 86.7 lb.in)
