Section 97 (Audio/AVN System (PHEV))
>>
Steering Wheel Remote Controller (SWRC)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

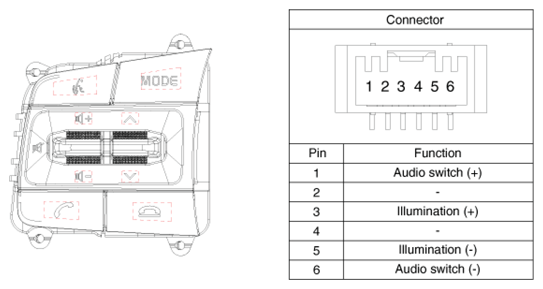

[Audio + Bluetooth + Voice]
Courtesy of KIA MOTORS AMERICA, INC.

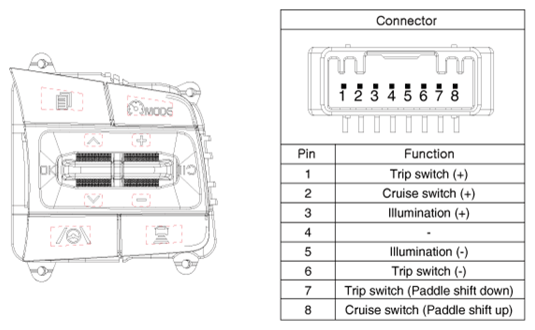

[Trip + SCC + LFA]
Courtesy of KIA MOTORS AMERICA, INC.
