Repair Procedures: Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
- Check for resistance between terminals in each switch position.

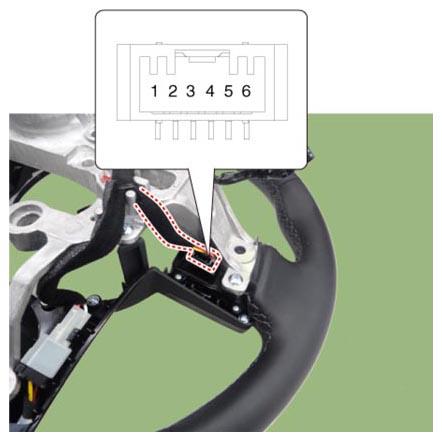

[Audio + Bluetooth + Voice]
| Switch | Connector terminal | Resistance (± 3%) |
|---|---|---|
| SEEK Up | 1 - 6 | 430 Ω |
| SEEK Down | 1.11 kΩ | |
| MODE | 2.11 kΩ | |
| MUTE | 3.11 kΩ | |
| Volume (+) | 4.61 kΩ | |
| Volume (-) | 6.81 kΩ | |
| Voice | 10.71 kΩ | |
| END | 18.91 kΩ | |
| SEND | 40.91 kΩ |

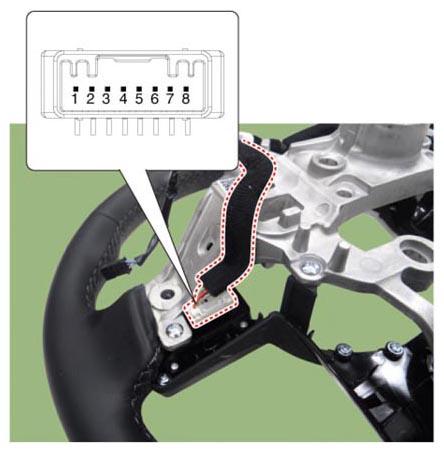

[Trip + SCC + LFA]
| Switch | Connector terminal | Resistance (± 3%) |
|---|---|---|
| Paddle shift (Up) | 2 - 6 | 390 Ω |
| Pause | 610 Ω | |
| Speed (Down) | 910 Ω | |
| Speed (Up) | 1.38 kΩ | |
| Cruise ON/OFF | 2.13 kΩ | |
| Cruise mode | 3.63 kΩ | |
| SCC | 7.93 kΩ | |
| Paddle shift (Down) | 1.6 | 390 Ω |
| Trip group | 610 Ω | |
| Trip (Up) | 910 Ω | |
| Trip (Down) | 1.38 kΩ | |
| Trip (OK) | 2.13 kΩ | |
| Back | 3.63 kΩ | |
| LFA | 7.93 kΩ |
