Display Audio 2.0
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

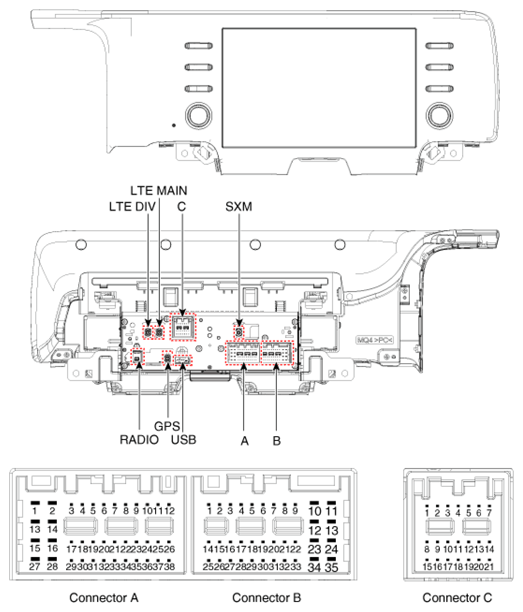

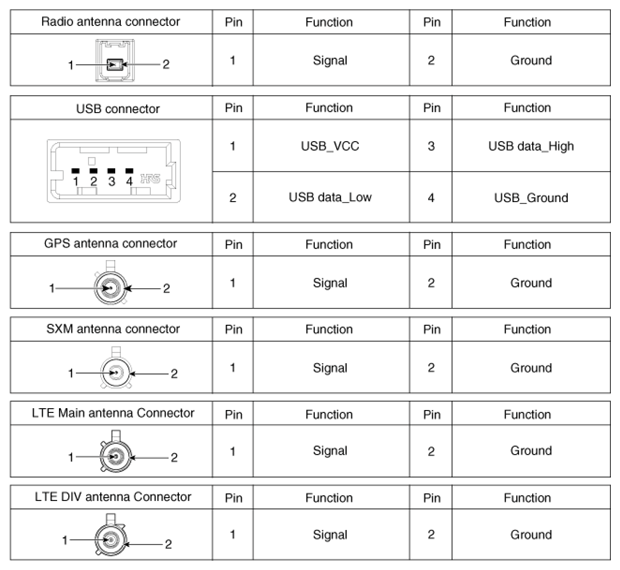

| Pin | Function | ||
|---|---|---|---|
| Connector A | Connector B | Connector C | |
| 1 | Left rear door speaker (+) | - | - |
| 2 | Left rear door speaker (-) | MIC (+) | I-CAN (High) |
| 3 | - | - | - |
| 4 | - | - | - |
| 5 | - | - | - |
| 6 | RVM: Camera power/SVM:- | Illumination (+) | - |
| 7 | RVM: Camera video/SVM: Camera video (Y) | MM-CAN (High) | - |
| 8 | RVM: -/SVM: Camera video (C) | - | - |
| 9 | - | - | I-CAN (Low) |
| 10 | - | Battery (+) | - |
| 11 | - | Battery (+) | - |
| 12 | Steering wheel key | Ground | - |
| 13 | Left front door speaker (+) | Ground | - |
| 14 | Left front door speaker (-) | - | - |
| 15 | Right front door speaker (-) | MIC (-) | MTS |
| 16 | Right front door speaker (+) | SVM: Detect2 | - |
| 17 | - | - | - |
| 18 | - | - | - |
| 19 | - | Illumination (-) | - |
| 20 | RVM: Camera power ground/SVM: Ground | MM-CAN (Low) | - |
| 21 | RVM: Camera video ground/SVM: Camera video (Y) ground | - | - |
| 22 | RVM: -/SVM: Camera video (C) ground | ACC | |
| 23 | - | - | |
| 24 | - | - | |
| 25 | - | Reverse | |
| 26 | Steering wheel_key_Ground | - | |
| 27 | Right rear door speaker (-) | - | |
| 28 | Right rear door speaker (+) | - | |
| 29 | - | - | |
| 30 | - | - | |
| 31 | - | - | |
| 32 | RVM: -/SVM: Detect | - | |
| 33 | RVM:-/SVM: Camera video (Y) shield | IGN1 | |
| 34 | RVM: -/SVM: Camera video (C) shield | - | |
| 35 | - | - | |
| 36 | - | ||
| 37 | - | ||
| 38 | Vehicle speed signal | ||
