Tweeter Speaker

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the front pillar trim.

    (Refer to Body - "FRONT PILLAR TRIM ")

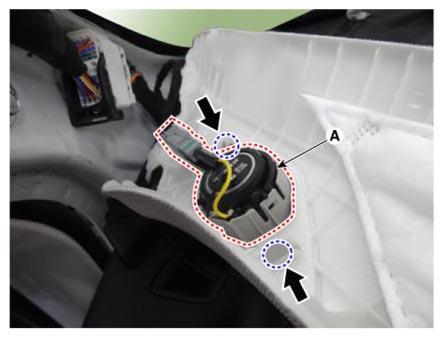

  3. Remove the tweeter speaker bracket (A) by pushing the holder in the direction of arrow.
    G14942401Courtesy of KIA MOTORS AMERICA, INC.

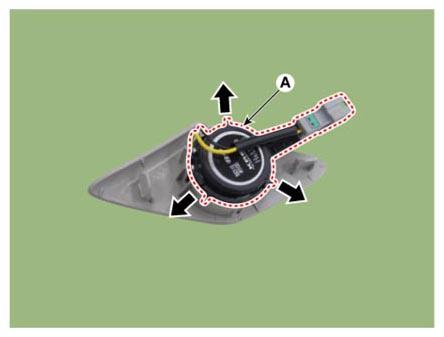

  4. Remove the tweeter speaker (A) by pushing the holder in the direction of arrow.
    G14942402Courtesy of KIA MOTORS AMERICA, INC.
