Sub Woofer Speaker

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the luggage side trim [LH].

    (Refer to Body - "LUGGAGE SIDE TRIM ")

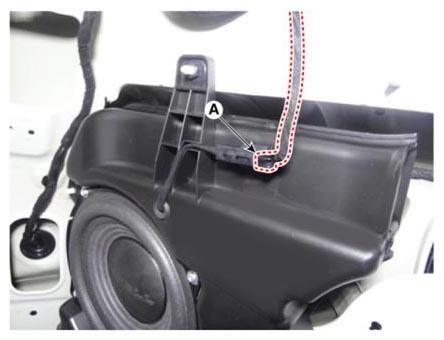

  3. Disconnect the sub woofer speaker connector (A).
    G14942409Courtesy of KIA MOTORS AMERICA, INC.

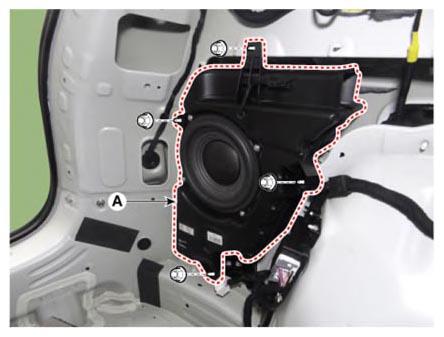

  4. Remove the sub woofer speaker (A) by removing the mounting nuts.
    G14942410Courtesy of KIA MOTORS AMERICA, INC.
