Rear Tweeter Speaker

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the tailgate pillar trim.

    (Refer to Body - "TAILGATE PILLAR TRIM ")

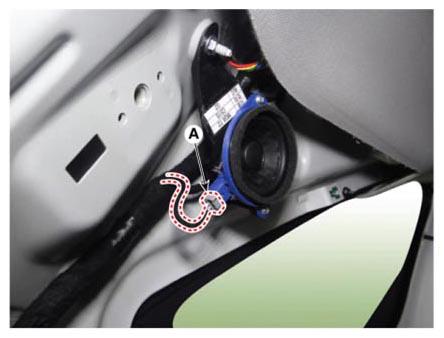

  3. Disconnect the rear tweeter speaker connector (A).
    G14942407Courtesy of KIA MOTORS AMERICA, INC.

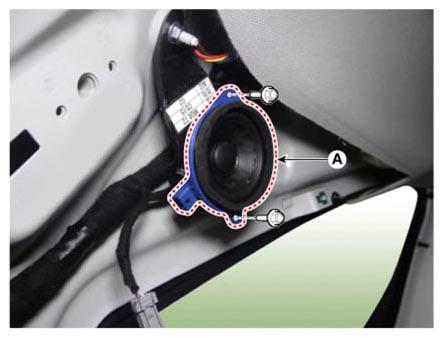

  4. Remove the rear tweeter speaker (A) by removing the mounting bolts.
    G14942408Courtesy of KIA MOTORS AMERICA, INC.
