Rear Door Speaker

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

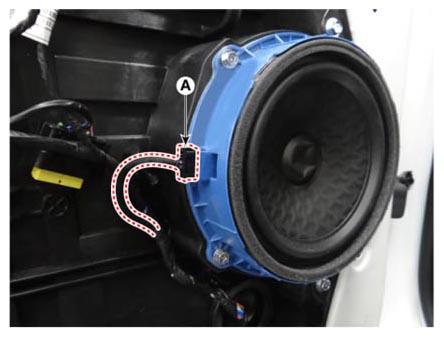

  3. Disconnect the rear door speaker connector (A).
    G14942405Courtesy of KIA MOTORS AMERICA, INC.

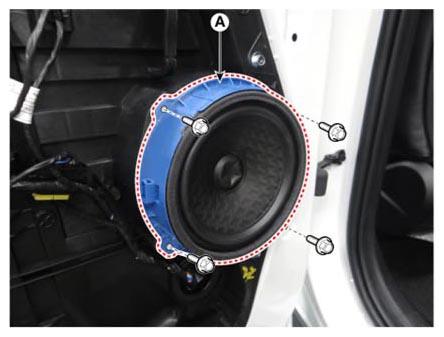

  4. Remove the rear door speaker (A) by removing the mounting bolts.
    G14942406Courtesy of KIA MOTORS AMERICA, INC.
