Front Midrange Speaker

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

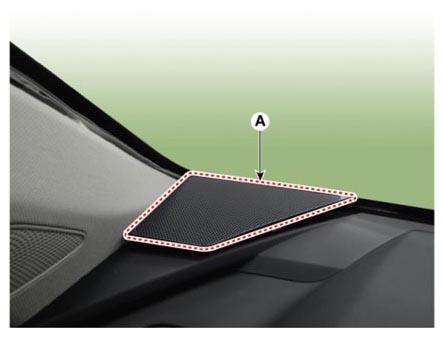

  2. Remove the front midrange speaker grille (A) by using a flat-head screwdriver or remover.
    G14942398Courtesy of KIA MOTORS AMERICA, INC.

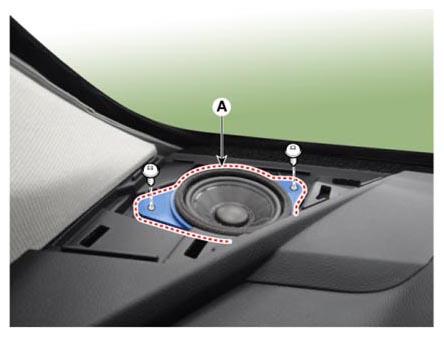

  3. Remove the front midrange speaker (A) by removing the mounting screws.
    G14942399Courtesy of KIA MOTORS AMERICA, INC.

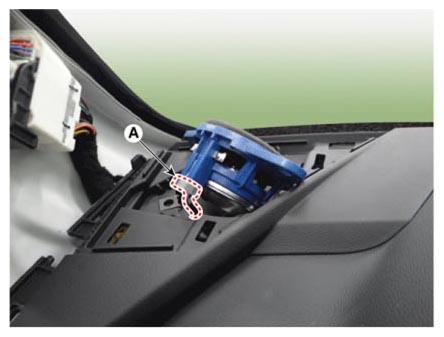

  4. Disconnect the front midrange speaker connector (A).
    G14942400Courtesy of KIA MOTORS AMERICA, INC.
