Front Door Speaker

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

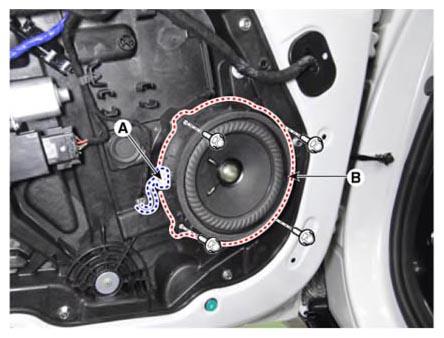

  3. Disconnect the front door speaker connector (A).
    G14942403Courtesy of KIA MOTORS AMERICA, INC.

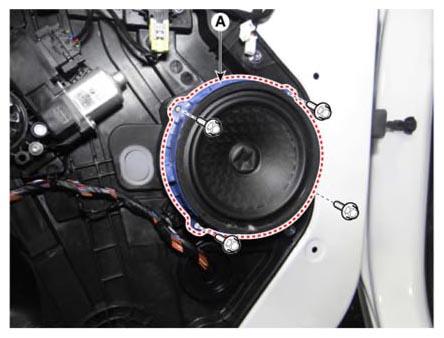

  4. Remove the front door speaker (A) by removing the mounting bolts.
    G14942404Courtesy of KIA MOTORS AMERICA, INC.
