Center Speaker

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

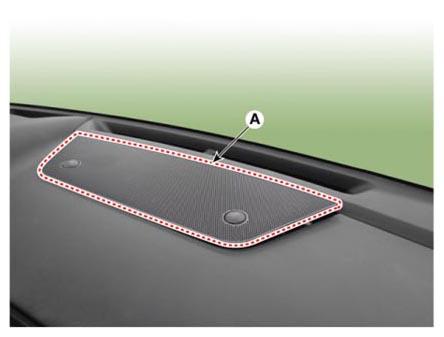

  2. Remove the center speaker grille (A) by using a flat-head screwdriver or remover.
    G14942394Courtesy of KIA MOTORS AMERICA, INC.

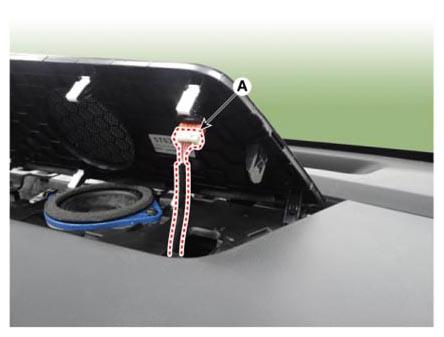

  3. Disconnected the auto light sensor connector (A).
    G14942395Courtesy of KIA MOTORS AMERICA, INC.

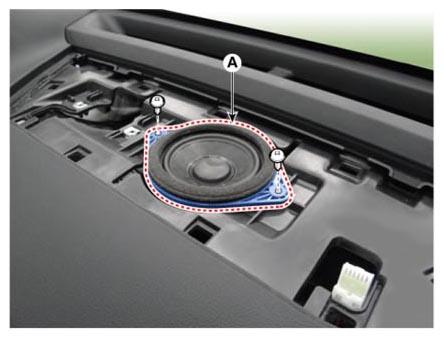

  4. Remove the center speaker (A) after removing the mounting screws.
    G14942396Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the center speaker connector (A).
    G14942397Courtesy of KIA MOTORS AMERICA, INC.
