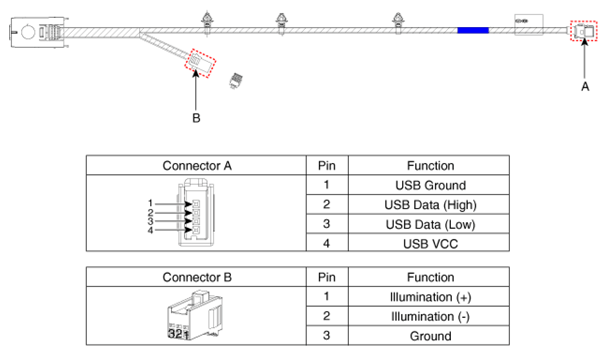

Circuit Diagram

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
G14942437Courtesy of KIA MOTORS AMERICA, INC.
