Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console lamp.

    (Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")

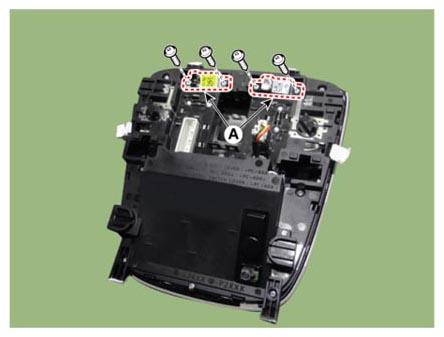

  2. Remove the handsfree mic (A) after removing the screws.
    G14942442Courtesy of KIA MOTORS AMERICA, INC.
