Roof Antenna
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
- Remove the roof trim assembly.
(Refer to Body - "ROOF TRIM ASSEMBLY ")

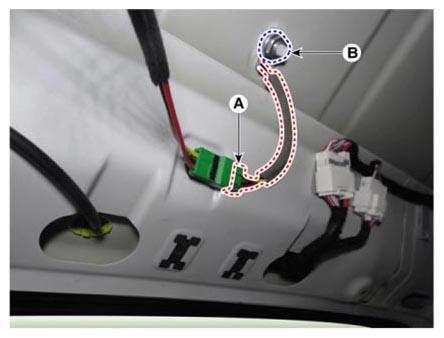

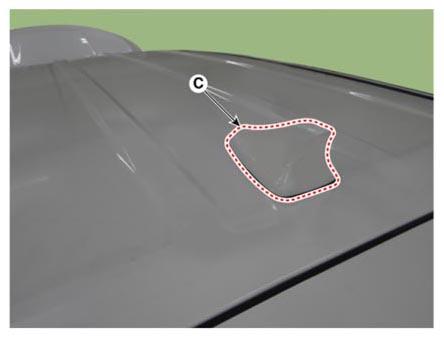

- Remove the roof antenna (C) after removing the nut (B) and disconnecting the roof antenna connector (A).
Tightening torque:
7.8 - 14.7 N.m (0.8 - 1.5 kgf.m, 5.8 - 10.8 lb.ft)
