Crash Pad Antenna

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the AVN head unit.

    (Refer to Audio/AVN System - "A/V NAVIGATION ")

  3. Remove the crash pad antenna.

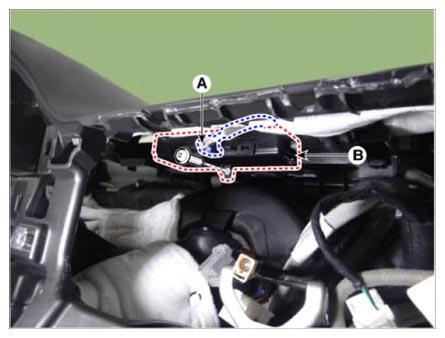

    1. Disconnect the crash pad antenna connector (A).
    2. Remove the crash pad antenna (B) after removing a mounting screw.
      G14942421Courtesy of KIA MOTORS AMERICA, INC.
