AVN 5.0
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Function | ||||
|---|---|---|---|---|

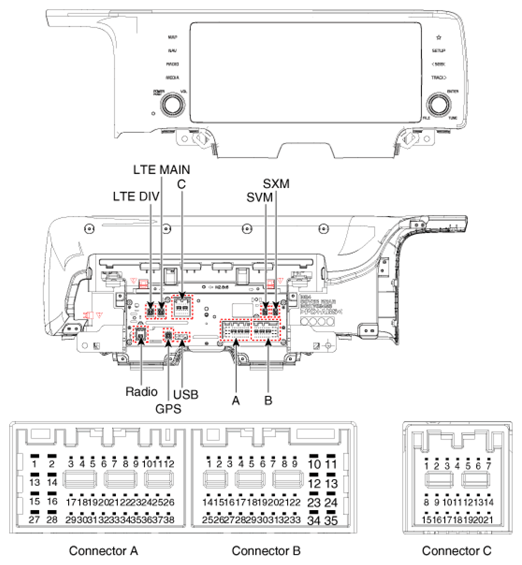

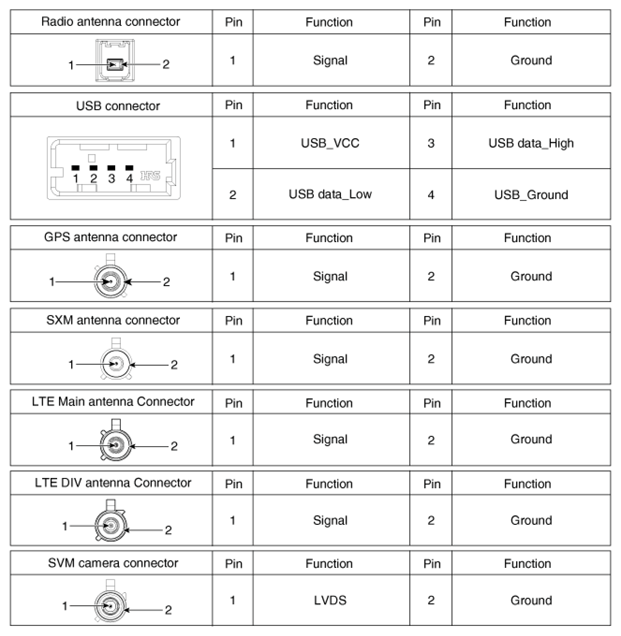

| Pin | Connector A | Connector B | Connector C | |
| External Amplifier | Internal Amplifier | |||
| 1 | - | Left rear door speaker (+) | MIC2 (+) (TMU Option) | - |
| 2 | - | Left rear door speaker (-) | MIC1 (+) | I-CAN (High) |
| 3 | Amplifier navigation voice (+) | - | - | - |
| 4 | Amplifier_SPDIF (High) | - | - | - |
| 5 | - | - | - | |
| 6 | CVBS Type: Camera power/LVDS Type: - | Illumination (+) | - | |
| 7 | CVBS Type: Camera video/LVDS Type: - | MM-CAN (High) | - | |
| 8 | - | - | - | |
| 9 | - | - | I-CAN (Low) | |
| 10 | - | Battery (+) | - | |
| 11 | - | Battery (+) | - | |
| 12 | Steering wheel key | Ground | - | |
| 13 | - | Left front door speaker (+) | Ground | - |
| 14 | - | Left front door speaker (-) | MIC2 (-) (TMU Option) | - |
| 15 | - | Right front door speaker (-) | MIC1 (-) | - |
| 16 | - | Right front door speaker (+) | - | MTS |
| 17 | Amplifier navigation voice (-) | - | - | - |
| 18 | Amplifier SPDIF (Low) | - | - | - |
| 19 | Amplifier SPDIF (Ground) | - | Illumination (-) | - |
| 20 | CVBS Type: Camera power ground/LVDS Type: - | MM-CAN (Low) | - | |
| 21 | CVBS Type: Camera video ground/LVDS Type: - | - | - | |
| 22 | - | ACC | ||
| 23 | - | - | ||
| 24 | - | - | ||
| 25 | - | Reverse | ||
| 26 | Steering wheel key ground | - | ||
| 27 | - | Right rear door speaker (-) | - | |
| 28 | - | Right rear door speaker (+) | - | |
| 29 | - | - | ||
| 30 | - | - | ||
| 31 | - | - | ||
| 32 | RVM: -/SVM: Ground | - | ||
| 33 | CVBS Type: Camera shield ground/LVDS Type: - | IGN1 | ||
| 34 | - | - | ||
| 35 | - | - | ||
| 36 | - | |||
| 37 | - | |||
| 38 | Vehicle speed | |||
