Repair Procedures: Removal: [Passenger]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the crash pad center panel.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

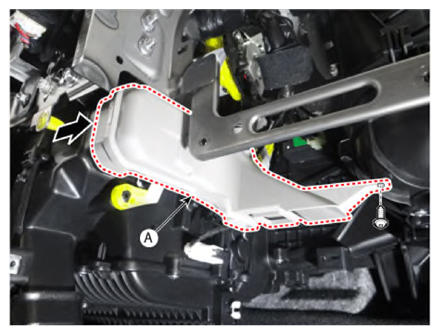

  3. Remove the passenger's shower duct (A) in the direction of the arrow after removing the mounting screw.
    G14958959Courtesy of KIA MOTORS AMERICA, INC.

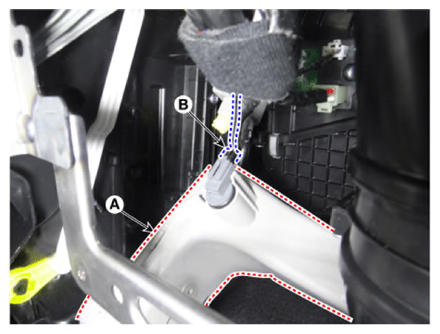

  4. Remove the passenger shower duct (A) by disconnecting the connector (B).
    G14958960Courtesy of KIA MOTORS AMERICA, INC.

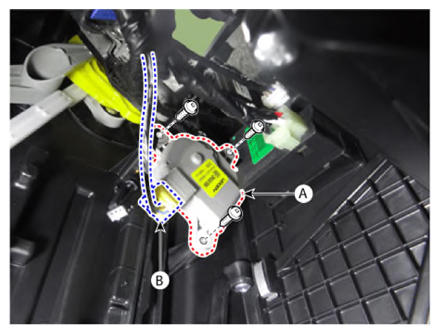

  5. Remove the temperature control actuator (A) by removing the mounting screws after disconnecting the connector (B).
    G14958961Courtesy of KIA MOTORS AMERICA, INC.
