Repair Procedures: Removal: [Driver]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

  3. Remove the parking collision - avoidance assist (PCA) unit.

    (Refer to Advanced Driver Assistance System (ADAS) - "PARKING COLLISION-AVOIDANCE ASSIST (PCA) (PHEV) ")

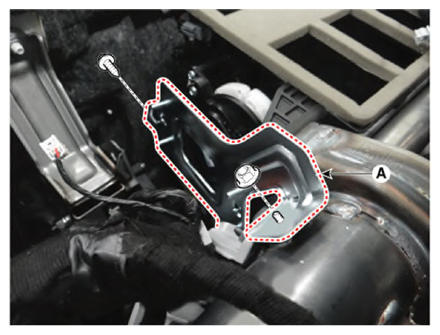

  4. Remove the parking collision - avoidance assist (PCA) unit bracket (A).
    G14958955Courtesy of KIA MOTORS AMERICA, INC.

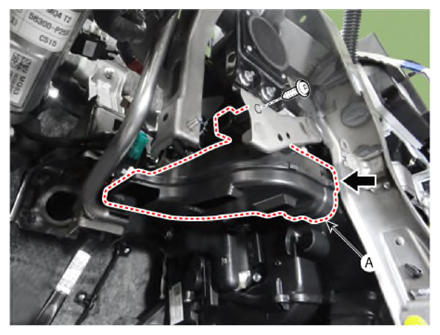

  5. Remove the driver's shower duct (A) in the direction of the arrow after removing the mounting screw.
    G14958956Courtesy of KIA MOTORS AMERICA, INC.

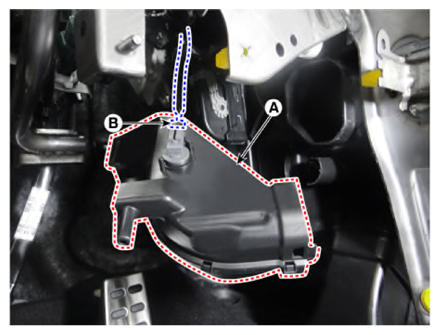

  6. Remove the driver shower duct (A) by disconnecting the connector (B).
    G14958957Courtesy of KIA MOTORS AMERICA, INC.

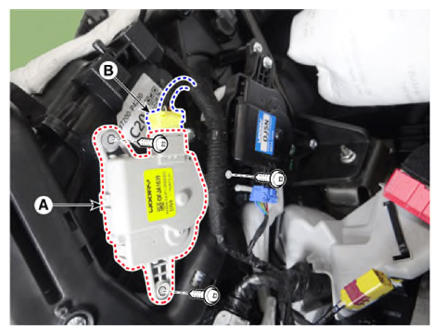

  7. Remove the temperature control actuator (A) by removing the mounting screws after disconnecting the connector (B).
    G14958958Courtesy of KIA MOTORS AMERICA, INC.
  8. Install in the reverse order of removal.
