Repair Procedures: Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch OFF.
- Disconnect the temperature control actuator connector.
- Verify that the temperature control actuator operates to the cool position when connecting 12V to terminal 7 and grounding terminal 3.
Verify that the temperature control actuator operates to the warm position when connected in reverse.

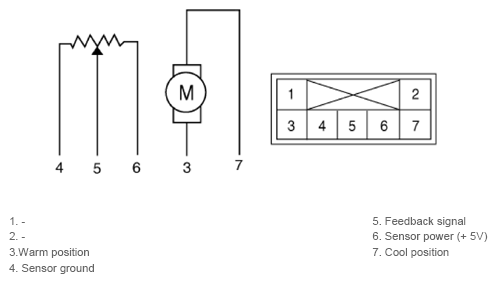

[Driver's side temperature control actuator]

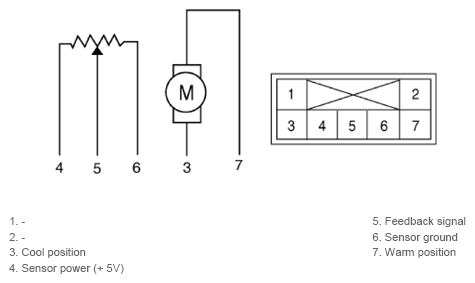

[Passenger's side temperature control actuator]
- Connect the temperature control actuator connector.
- Turn the ignition switch ON.
- Check the voltage between terminal 4 and 5.
Information
- It will feedback the current position of the actuator to controls.
VOLTAGE SPECIFICATIONDoor Position Voltage (V) Error Detecting Max. cooling 0.3 ± 0.15 Low voltage: 0.1V or less
High voltage: 4.9V or moreMax. heating 4.7 ± 0.15 - If the measured voltage is not within specification, check the operation by replacing the existing temperature control actuator with a new genuine part. After that, determine whether replacement of the temperature control actuator is required or not.
