Repair Procedures: Removal: [Passenger]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the main crash pad assembly.

    (Refer to Body - MAIN CRASH PAD ASSEMBLY ")

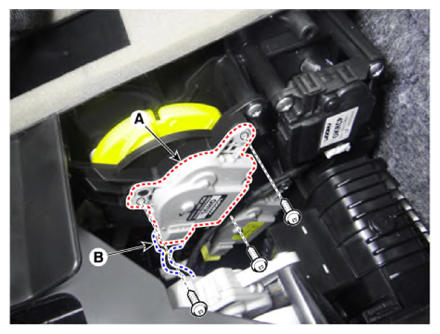

  3. Remove the mode control actuator (A) by removing the mounting screws after disconnecting the connector (B).
    G14958966Courtesy of KIA MOTORS AMERICA, INC.
