Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  3. Remove the front wheel transfer assembly.

    (Refer to All Drive Wheel (AWD) - "FRONT WHEEL TRANSFER CASE ASSEMBLY ")

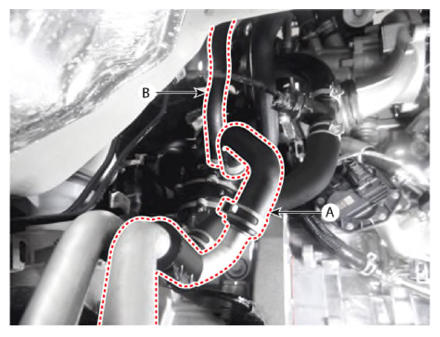

  4. Separate the heater hose (A), (B) connected to auxiliary electronic water pump (AEWP).
    G14958969Courtesy of KIA MOTORS AMERICA, INC.

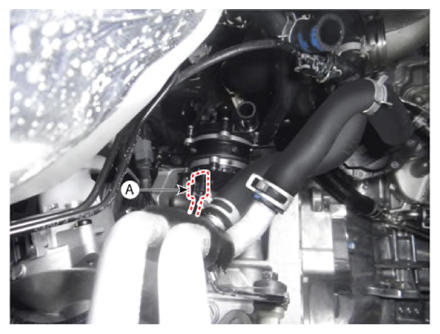

  5. Separate the connector (A) in connected the auxiliary electronic water pump (AEWP) (A).
    G14958970Courtesy of KIA MOTORS AMERICA, INC.

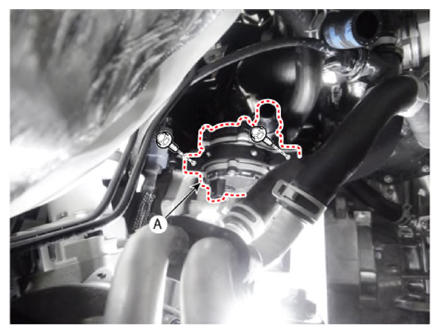

  6. Remove the auxiliary electronic water pump (AEWP) (A) by removing the mounting bolt.

    Tightening Torque:  1.9 - 2.2 kgf.m

    G14958971Courtesy of KIA MOTORS AMERICA, INC.
