Removal And Installation

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt.

    (Refer to Drive Belt System - "DRIVE BELT ")

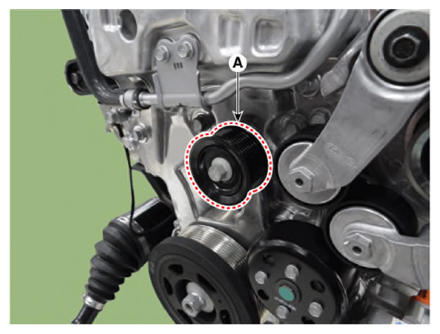

  2. Remove the idler (A).

    Tightening torque:

    34.3 - 41.2 N.m (3.5 - 4.2 kgf.m, 25.3 - 30.4 lb.ft)

    G14937093Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
