Components & Components Location: Components

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

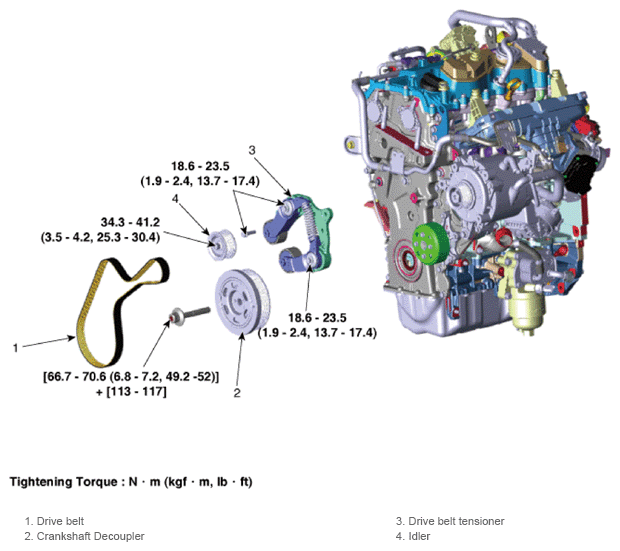

Fig 1: Drive Belt System Components Location With Torque Specification
G14937083Courtesy of KIA MOTORS AMERICA, INC.
