Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine clutch assembly.

    (Refer to Hybrid Motor Assembly - "ENGINE CLUTCH ASSEMBLY ")

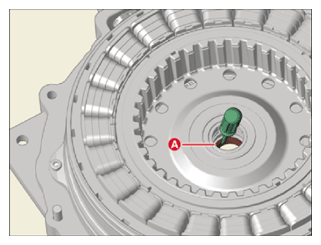

  2. Remove the oil seal (A) by hitting the hammer to screwdriver.
    G14959870Courtesy of KIA MOTORS AMERICA, INC.

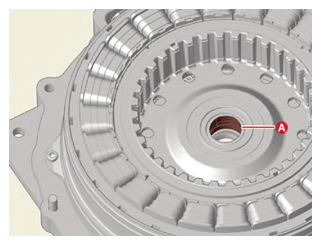

    NOTE: Be care not to damage the needle bearing (A).
    G14959871Courtesy of KIA MOTORS AMERICA, INC.
