Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hybrid drive motor assembly.

    (Refer to Hybrid Motor System - "HYBRID DRIVE MOTOR ASSEMBLY ")

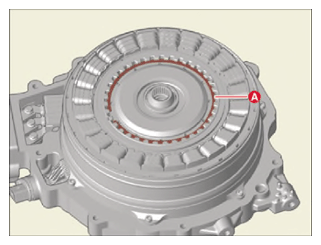

  2. Remove the upper snap ring (A).
    G14959831Courtesy of KIA MOTORS AMERICA, INC.
    IMPORTANT:

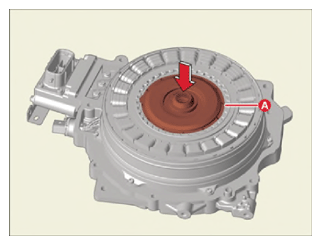

    1. Press the engine clutch piston (A) in the direction of the arrow.
      G14959832Courtesy of KIA MOTORS AMERICA, INC.

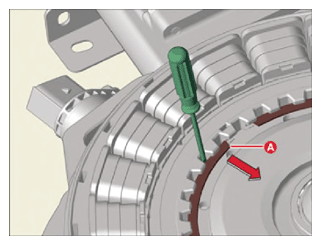

    2. With the engine clutch piston pressed, remove the snap ring (A) by pushing it outward using a (-) screwdriver.
      G14959833Courtesy of KIA MOTORS AMERICA, INC.

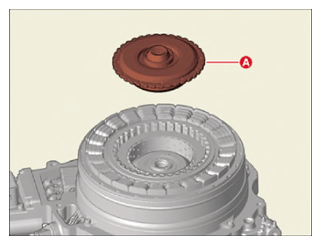

  3. Remove the engine clutch retainer assembly (A).
    G14959834Courtesy of KIA MOTORS AMERICA, INC.

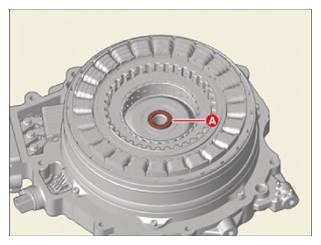

  4. Remove the thrust washer (A).
    G14959835Courtesy of KIA MOTORS AMERICA, INC.

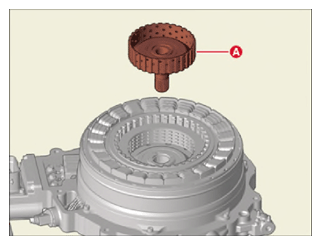

  5. Remove the engine clutch hub assembly (A).
    G14959836Courtesy of KIA MOTORS AMERICA, INC.

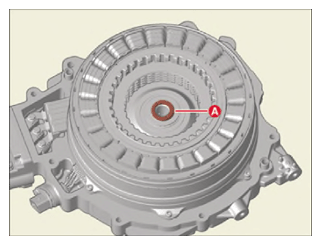

  6. Remove the thrust washer (A).
    G14959837Courtesy of KIA MOTORS AMERICA, INC.

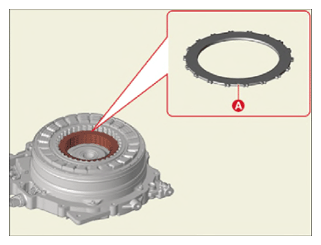

  7. Remove the engine clutch select pressure plate (A).
    G14959838Courtesy of KIA MOTORS AMERICA, INC.

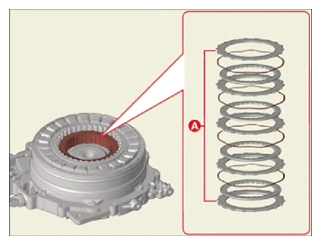

  8. Remove the engine clutch disk set (A).
    G14959839Courtesy of KIA MOTORS AMERICA, INC.

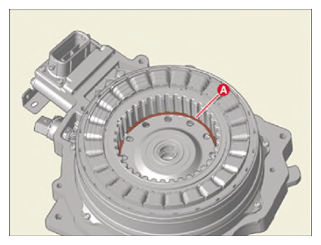

  9. Remove the lower snap ring (A).
    G14959840Courtesy of KIA MOTORS AMERICA, INC.

    Information

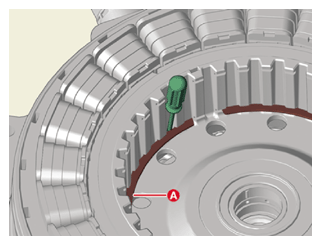

    Remove the snap ring (A) using a (-) screwdriver.

    G14959841Courtesy of KIA MOTORS AMERICA, INC.
  10. Remove the oil seal when reusing the hybrid drive motor.

    (Refer to Hybrid Motor Assembly - "OIL SEAL ")
