Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

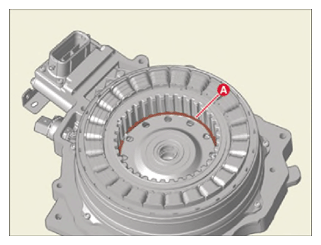

  1. Install the lower snap ring (A).
    G14959842Courtesy of KIA MOTORS AMERICA, INC.

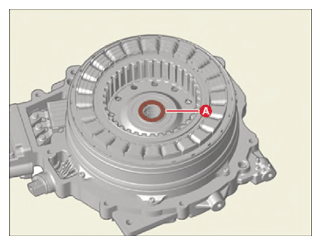

  2. Install the thrust washer (A).
    G14959843Courtesy of KIA MOTORS AMERICA, INC.

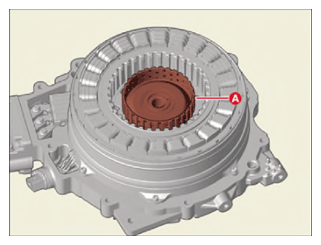

  3. Install the engine clutch hub assembly (A).
    G14959844Courtesy of KIA MOTORS AMERICA, INC.

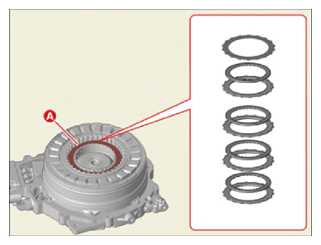

  4. Install the disk set (A) without the separating springs.
    G14959845Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

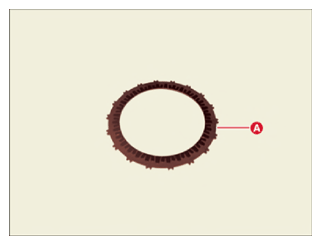

    • Install the friction surface (A) of the disk plate facing downward.
      G14959846Courtesy of KIA MOTORS AMERICA, INC.
    • The teeth direction (A) of the outer disk plate must be aligned.
      G14959847Courtesy of KIA MOTORS AMERICA, INC.

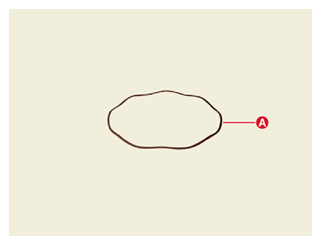

    IMPORTANT: For the purpose of measuring the end play, the disk set should be installed without the separating springs (A).
    G14959848Courtesy of KIA MOTORS AMERICA, INC.

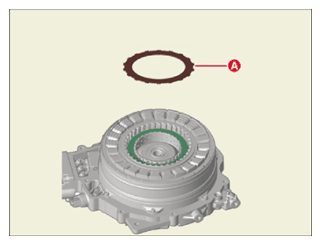

  5. Install the medium thickness of 1.4 mm (0.0551 in.) engine clutch select pressure plate (A).
    G14959849Courtesy of KIA MOTORS AMERICA, INC.
    IMPORTANT: Engine clutch select pressure plate list
    Part Number Thickness [mm (in.)]
    45571-3D810 1.0
    45571-3D812 1.2
    45571-3D813 1.3
    45571-3D814 1.4
    45571-3D815 1.5
    45571-3D816 1.6
    45571-3D818 1.8
  6. Install the engine clutch retainer assembly (A).
    G14959851Courtesy of KIA MOTORS AMERICA, INC.

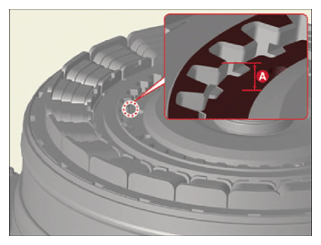

  7. Record the value after measuring the installation depth of the engine clutch retainer.
    G14959852Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

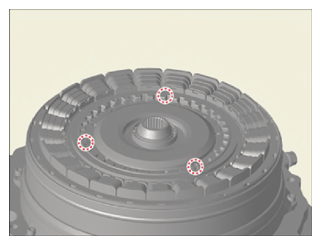

    • Depth should be measured on the surface plate to minimize the error.
    • Find the average value by measuring at least 3 points for the accuracy.
    G14959853Courtesy of KIA MOTORS AMERICA, INC.
    IMPORTANT: How to measure the depth

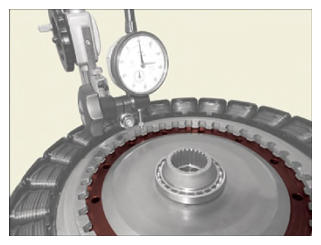

    1. Set the zero at 10 mm (0.3937 in.) after placing the dial of the height gauge on the top surface of the engine clutch retainer.
      G14959854Courtesy of KIA MOTORS AMERICA, INC.

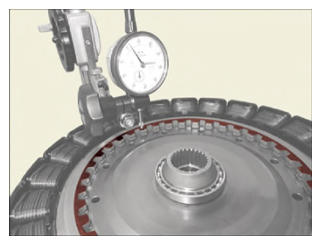

    2. Adjust the high gauge until the dial value is 10 mm after placing the dial on the top surface of the outer boss.
      G14959855Courtesy of KIA MOTORS AMERICA, INC.
    3. Check the value of the height gauge.
  8. Remove the engine clutch retainer assembly (A).
    G14959856Courtesy of KIA MOTORS AMERICA, INC.

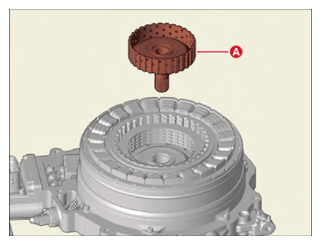

  9. Remove the engine clutch hub assembly (A).
    G14959858Courtesy of KIA MOTORS AMERICA, INC.

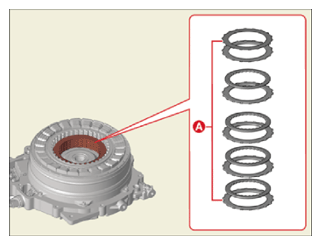

  10. Remove the disk set and the engine clutch select pressure plate (A).
    G14959859Courtesy of KIA MOTORS AMERICA, INC.
  11. Install the engine clutch hub assembly (A).
    G14959860Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Check whether the thrust washer is installed before installing the engine clutch hub assembly.

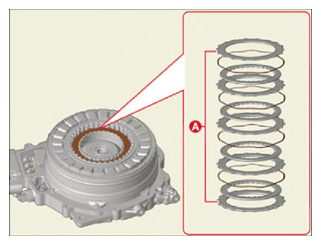

  12. Install the disk set (A) with the separating springs.
    G14959861Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

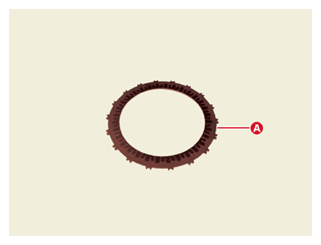

    • Install the friction surface (A) of the disk plate facing downward.
      G14959862Courtesy of KIA MOTORS AMERICA, INC.

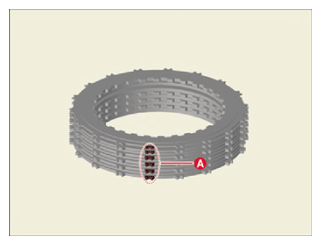

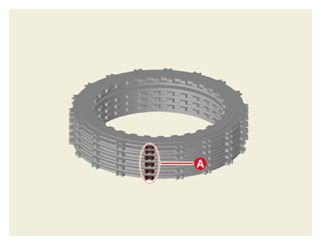

    • The teeth direction (A) of the outer disk plate must be aligned.
      G14959863Courtesy of KIA MOTORS AMERICA, INC.
  13. Install the medium thickness of 1.4 mm (0.0551 in.) engine clutch select pressure plate (A).
    G14959864Courtesy of KIA MOTORS AMERICA, INC.

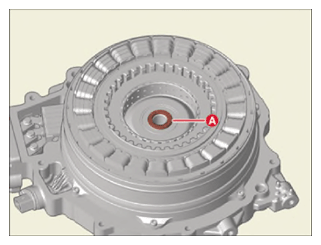

  14. Install the thrust washer (A).
    G14959865Courtesy of KIA MOTORS AMERICA, INC.

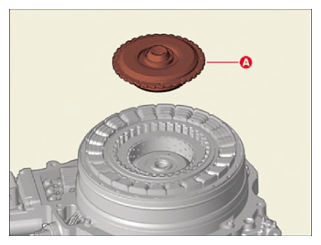

  15. Install the engine clutch retainer assembly (A).
    G14959866Courtesy of KIA MOTORS AMERICA, INC.

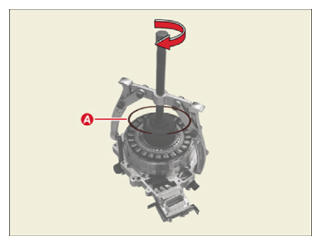

  16. After pressing the engine clutch using the clamp, install the upper snap ring (A).
    G14959867Courtesy of KIA MOTORS AMERICA, INC.

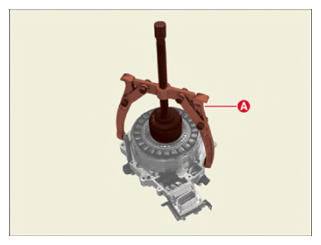

  17. Remove the clamp (A).
    G14959868Courtesy of KIA MOTORS AMERICA, INC.

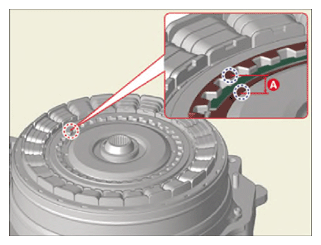

  18. Measure the engine clutch retainer installation depth and record the measured value.
    G14959869Courtesy of KIA MOTORS AMERICA, INC.
  19. Change the engine clutch select pressure plate if necessary after checking the end play.

    End play = (Measured value at step 20) - (Measured value at step 8)

    Specified end play: 0.65 - 0.95 mm (0.0256 - 0.0374 in.)

    NOTE: If the end play is out of the specified value, change the engine clutch select pressure plate in the following method below.
    • Less than specified end play: 1.4 mm (0.0551 in.) - (measured end play - average value of specified end play) = Appropriate engine clutch select pressure plate thickness
    • More than specified end play: 1.4 mm (0.0551 in.) + (measured end play - average value of specified end play) = Appropriate engine clutch select pressure plate thickness
    IMPORTANT: Engine clutch select pressure plate list
    Part Number Thickness [mm (in.)]
    45571-3D810 1.0
    45571-3D812 1.2
    45571-3D813 1.3
    45571-3D814 1.4
    45571-3D815 1.5
    45571-3D816 1.6
    45571-3D818 1.8
  20. Install the hybrid drive motor assembly.

    (Refer to Hybrid Motor System - "HYBRID DRIVE MOTOR ASSEMBLY ")
