Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

NOTE:

Do not reuse the high pressure fuel pipe.
Be careful not to transform the shape of the high pressure fuel pipe.
If the injector is dropped, it may cause internal damage. (Do not reuse)

Replace the high pressure fuel pipe with a new one. (Do not reuse)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

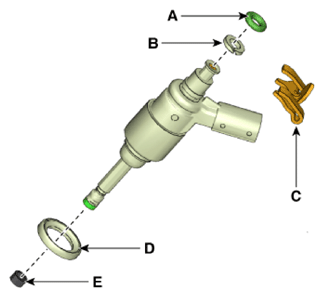

Note the followings when mounting the injector on the delivery pipe:

When reusing the injector, replace it with a new one.

O-Ring
Support disc
Clip
Rubber washer (When installing the rubber washer, mount the steel plate faced to the cylinder mount and the rubber plate faced to the injector body.)
Sealing

(Refer to Injector - "REPLACEMENT ")

Courtesy of KIA MOTORS AMERICA, INC.

Apply engine oil to the injector O-ring.
Do not apply engine oil to the combustion seal ring.
