Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Release the residual pressure in the fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")
Remove the air duct (A) by removing the mounting nuts.

Courtesy of KIA MOTORS AMERICA, INC.

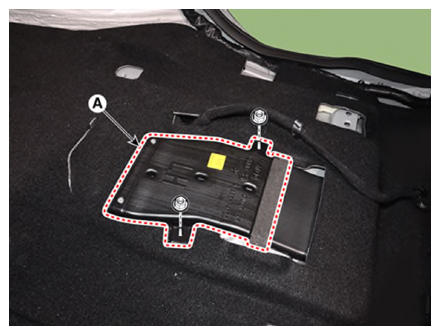

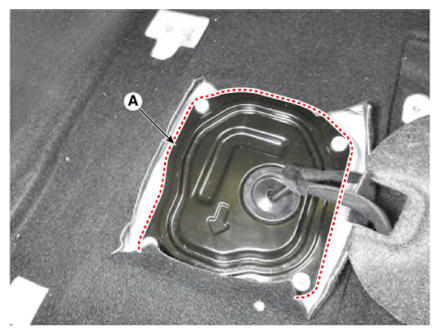

Remove the fuel pump service cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

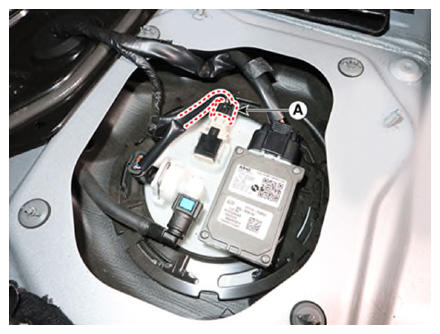

Disconnect the Fuel Tank Pressure Sensor (FTPS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

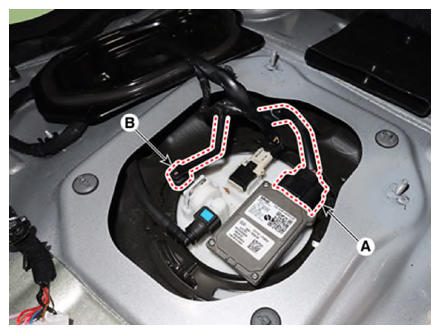

Disconnect the Fuel Pump Control Module (FPCM) connector (A) and Fuel Pressure Sensor (FPS) connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

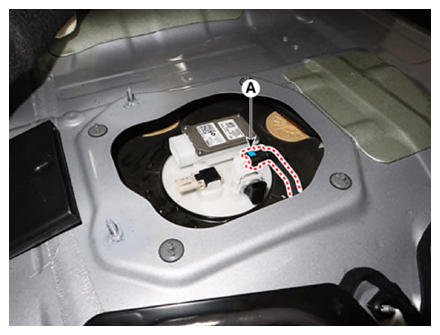

Separate the fuel feed quick-connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the center muffler assembly.
(Refer to Engine Mechanical System - "MUFFLER ")
Remove the propeller shaft assembly.[AWD only]
(Refer to Driveshaft and axle - "PROPELLER SHAFT ASSEMBLY ")

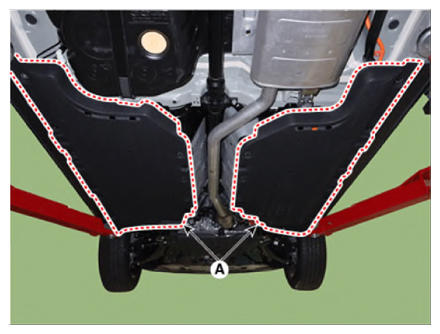

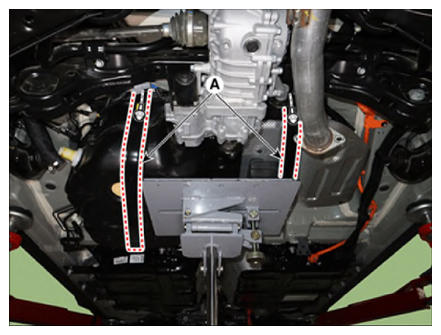

Remove the floor under cover (A) by removing the bolts.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

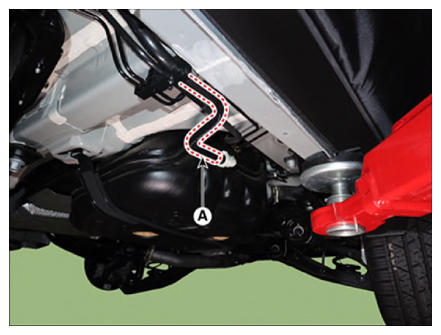

Separate the fuel feed tube (A) by releasing the quick-connector.

Courtesy of KIA MOTORS AMERICA, INC.

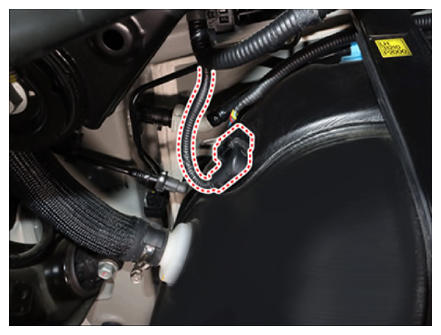

Disconnect the Fuel Tank Isolation Valve (FTIV) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

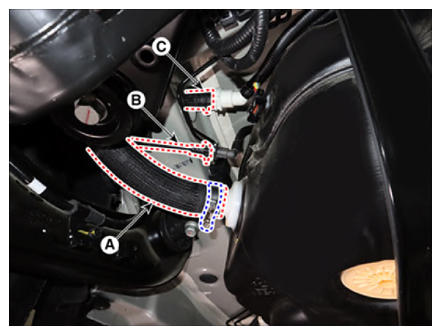

Separate the hoses.
1. Fuel filler hose
2. Leveling hose
3. Ventilation hose
Courtesy of KIA MOTORS AMERICA, INC.

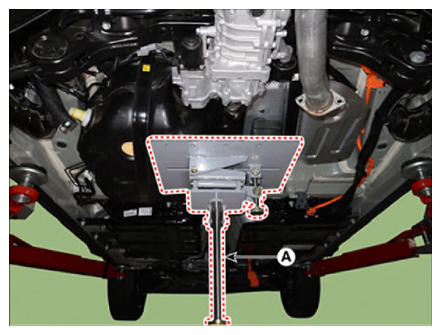

Support the fuel tank with a jack (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel tank band (A) after removing the mounting bolts.
Tightening torque:

40.0 - 53.9 N.m (4.0 - 5.5 kgf.m, 29.0 - 39.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel tank by lowering the jack slowly.
