Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel pump module.

    (Refer to Fuel Delivery System - "FUEL PUMP MODULE ")

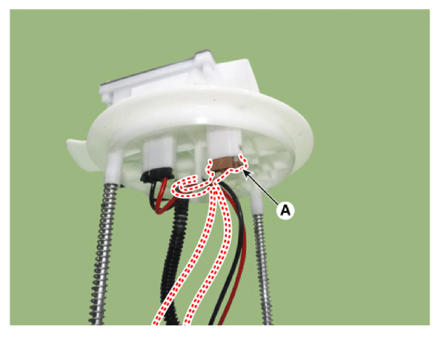

  2. Disconnect the fuel sender connector (A).
    G14957140Courtesy of KIA MOTORS AMERICA, INC.

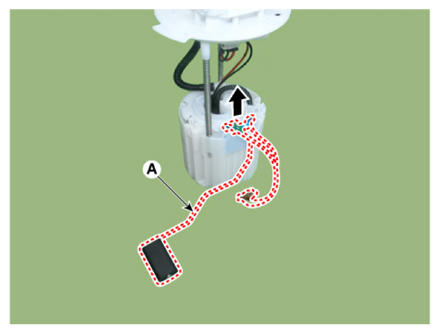

  3. Press the fixing hook and remove fuel sender (A).
    G14957141Courtesy of KIA MOTORS AMERICA, INC.
