Fuel Pump
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch OFF, and then remove battery (-) terminal.
- Remove the fuel pump assembly.

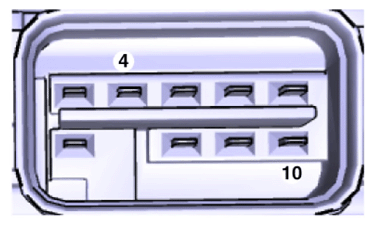

- Check motor operation by connecting power to terminal 4 and ground terminal 10 of fuel pump connector.
Pin Function 1 Fuel sender (-) 2 Fuel pressure sensor signal 3 Fuel pressure sensor ground 4 Ground 5 CAN_LOW 6 Fuel sender (+) 7 - 8 Fuel pressure sensor (+) 9 CAN_HIGH 10 Battery (+)
