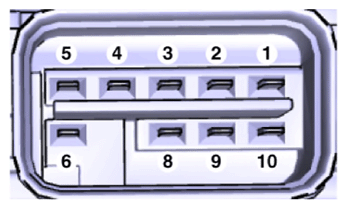

Connector and Terminal Function
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Pin |
Function |
| 1 |
Fuel sender (-) |
| 2 |
Fuel pressure sensor signal |
| 3 |
Fuel pressure sensor ground |
| 4 |
Ground |
| 5 |
CAN_LOW |
| 6 |
Fuel sender (+) |
| 7 |
- |
| 8 |
Fuel pressure sensor (+) |
| 9 |
CAN_HIGH |
| 10 |
Battery (+) |
