Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If the Fuel Pump Control Module (FPCM) needs to be replaced, replace the plate cover assembly.
  1. Remove the fuel pump module.

    (Refer to Fuel Delivery System - "FUEL PUMP MODULE ")

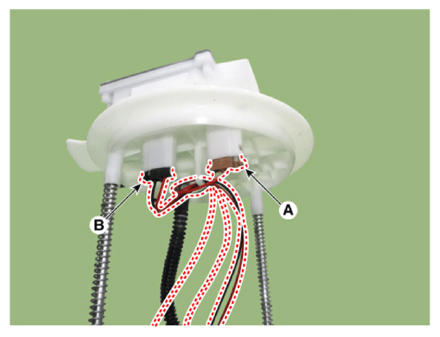

  2. Disconnect the fuel sender connector (A) fuel pump connector (B).
    G14957182Courtesy of KIA MOTORS AMERICA, INC.

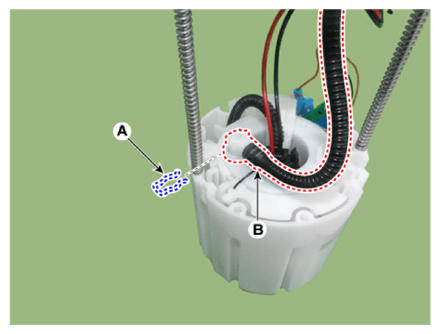

  3. Separate the fuel feed tube quick-connector (B) after removing the fixing clip (A).
    G14957183Courtesy of KIA MOTORS AMERICA, INC.

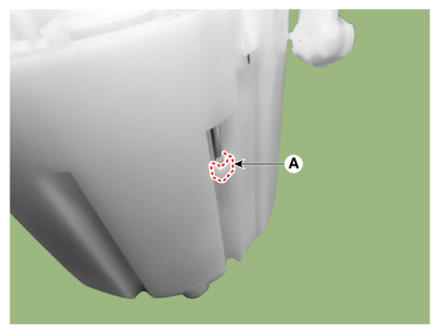

  4. Remove the stopper (A).
    G14957184Courtesy of KIA MOTORS AMERICA, INC.

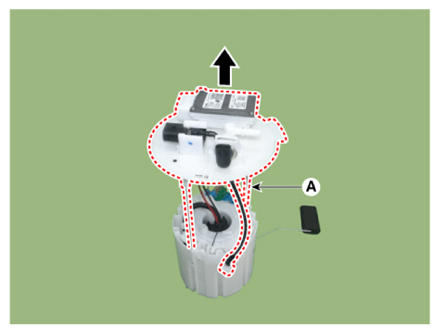

  5. Remove the plate cover assembly (A).
    G14957185Courtesy of KIA MOTORS AMERICA, INC.
