Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fuel pump module.
(Refer to Fuel Delivery System - "FUEL PUMP MODULE ")
Disconnect the fuel sender connector (A) and fuel pump connector (B).

Courtesy of KIA MOTORS AMERICA, INC.
Separate the fuel feed tube quick-connector (B) after removing the fixing clip (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the stopper (A).

Courtesy of KIA MOTORS AMERICA, INC.

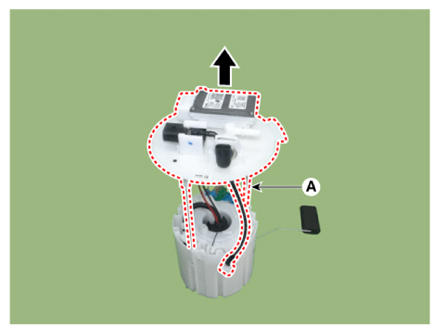

Remove the plate assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

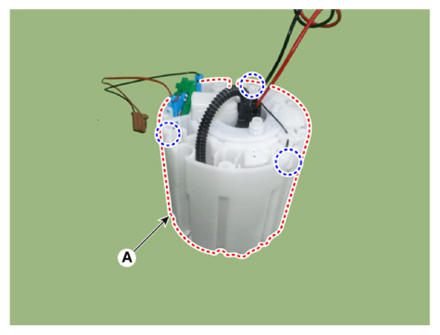

Remove the reservoir cup (A) after releasing the fixing hooks.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel pressure regulator fixing clip (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel pressure regulator (A).

Courtesy of KIA MOTORS AMERICA, INC.

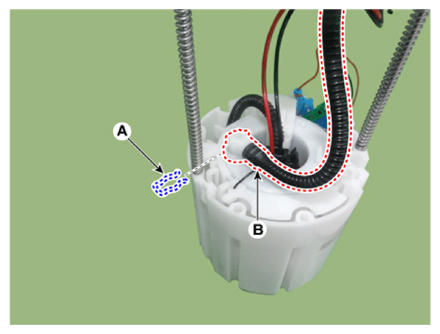

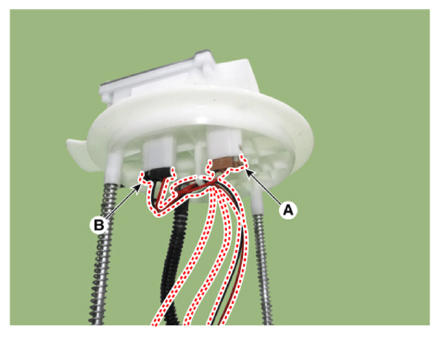

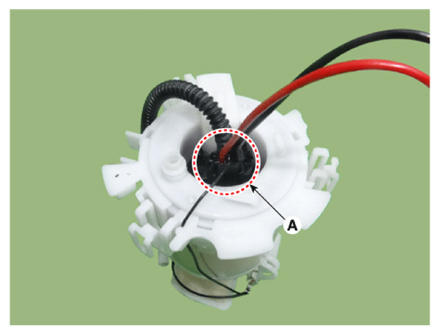

Remove the wiring from the fuel filter after disconnecting the fuel pump connector (A) and ground (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

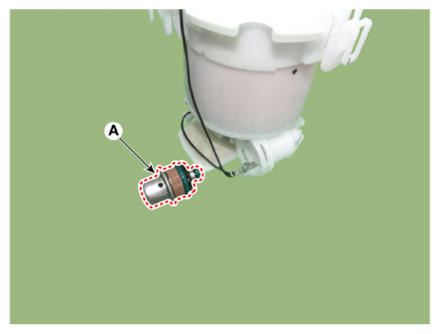

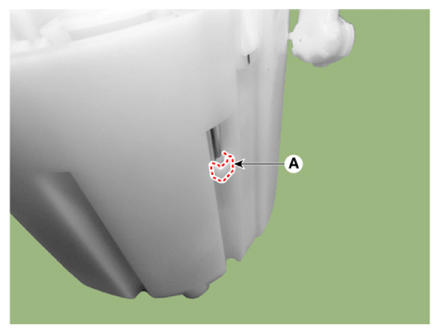

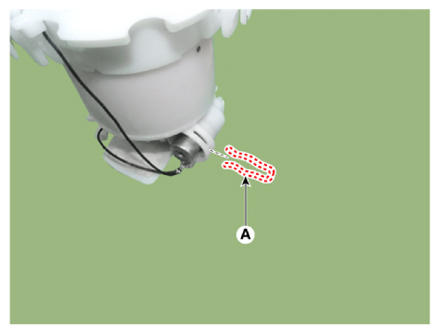

Remove the assist pump (A) after releasing the fixing hook.

Courtesy of KIA MOTORS AMERICA, INC.

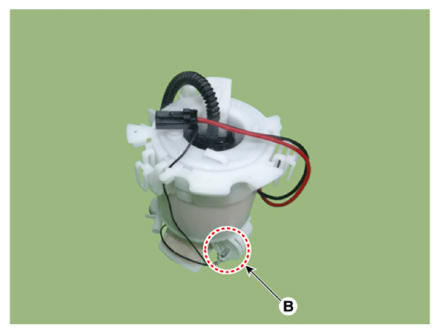

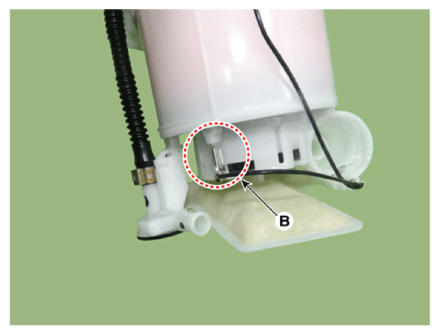

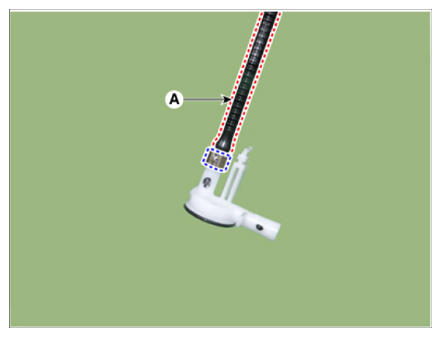

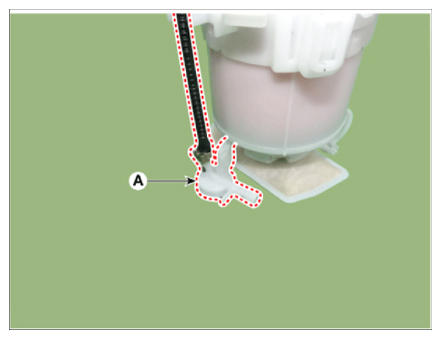

Separate the fuel pump hose (A) after releasing the clamp.

Courtesy of KIA MOTORS AMERICA, INC.

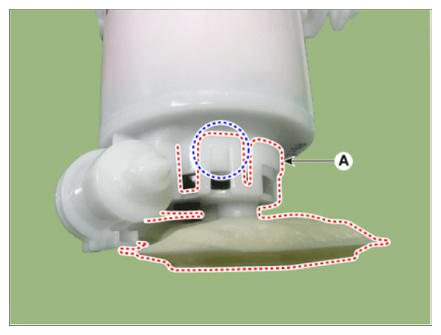

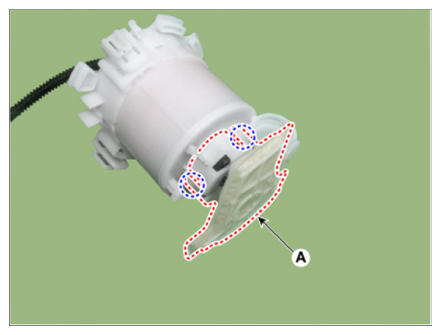

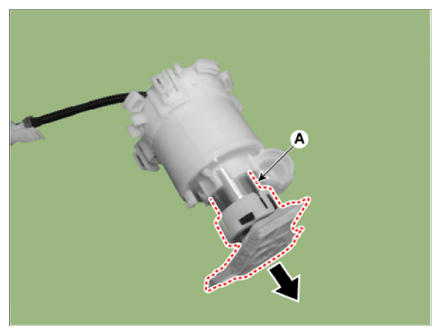

Remove the pump filter And fuel pump (A) after releasing the hooks.

Courtesy of KIA MOTORS AMERICA, INC.
