Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery system - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

  3. Remove the air duct (A) by removing the mounting nuts.

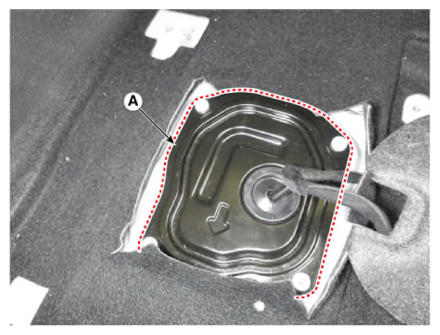

  4. Remove the fuel pump service cover (A).
    G14957171Courtesy of KIA MOTORS AMERICA, INC.

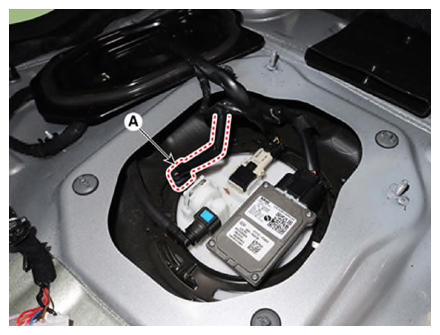

  5. Disconnect the Fuel Pressure Sensor (FPS) connector (A).
    G14957172Courtesy of KIA MOTORS AMERICA, INC.

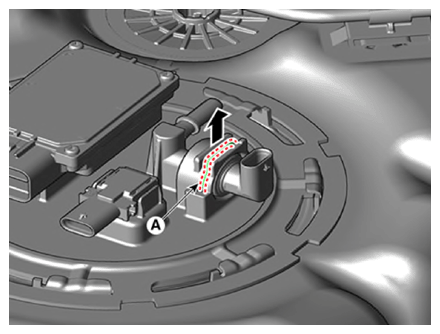

  6. Remove the FPS fixing clip (A).
    G14957173Courtesy of KIA MOTORS AMERICA, INC.

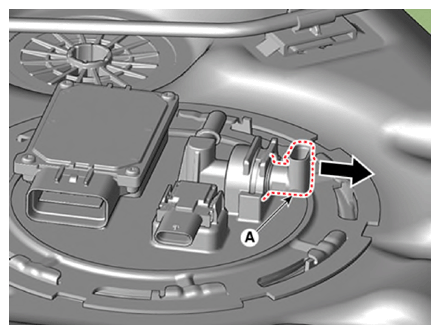

  7. Remove the FPS (A) by pulling it in the direction of arrow.
    G14957174Courtesy of KIA MOTORS AMERICA, INC.
