Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel pump module.

    (Refer to Fuel Delivery System - "FUEL PUMP MODULE ")

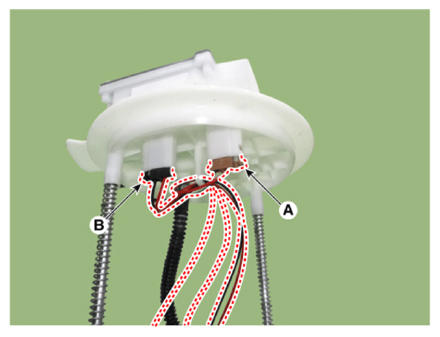

  2. Disconnect the fuel sender connector (A) and fuel pump connector (B).
    G14957143Courtesy of KIA MOTORS AMERICA, INC.

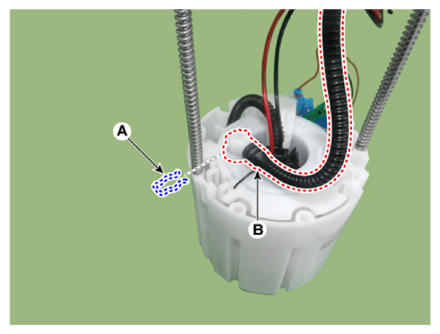

  3. Separate the fuel feed tube quick-connector (B) after removing the fixing clip (A).
    G14957144Courtesy of KIA MOTORS AMERICA, INC.

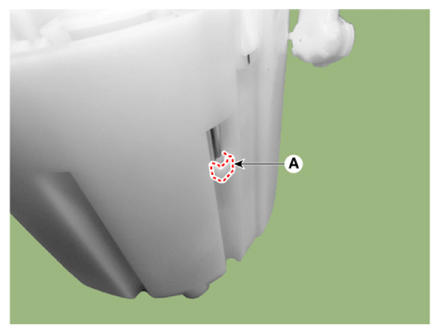

  4. Remove the stopper (A).
    G14957145Courtesy of KIA MOTORS AMERICA, INC.

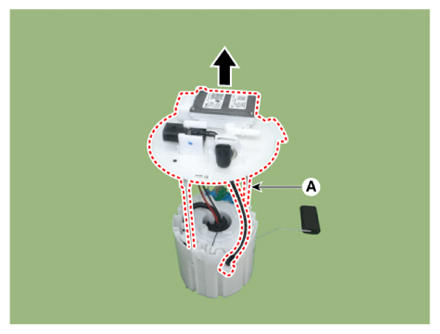

  5. Remove the plate assembly (A).
    G14957146Courtesy of KIA MOTORS AMERICA, INC.

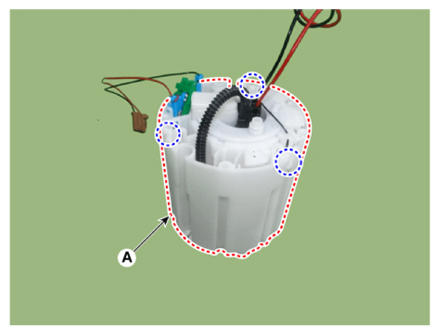

  6. Remove the reservoir cup (A) after releasing the fixing hooks.
    G14957147Courtesy of KIA MOTORS AMERICA, INC.

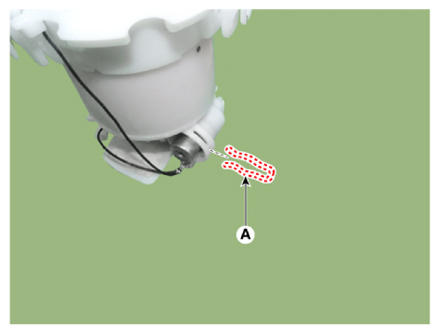

  7. Remove the fuel pressure regulator fixing clip (A).
    G14957148Courtesy of KIA MOTORS AMERICA, INC.

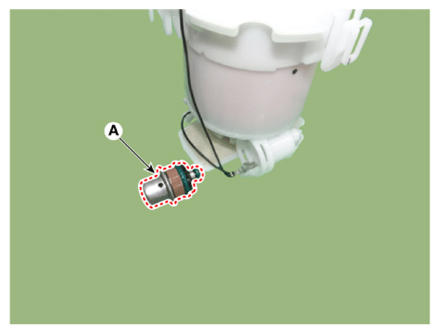

  8. Remove the fuel pressure regulator (A).
    G14957149Courtesy of KIA MOTORS AMERICA, INC.
