Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.
NOTE:
- Do not reuse the high pressure fuel pipe.
- Torque wrench should not be tilt when you tighten the nut.
- Install the high pressure fuel pipe following order below.

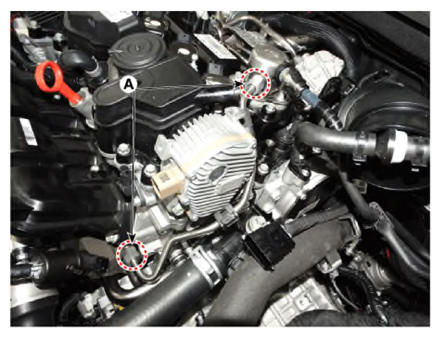

  1. Tighten both nuts (A) completely by hand.
Courtesy of KIA MOTORS AMERICA, INC.

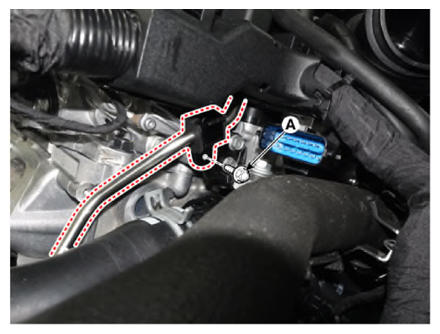

Tighten the function block mounting bolt (A) with the specified torque.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Tighten both nuts (A) completely with the specified torque.
Tightening torque:

32.4 - 35.3 N.m (3.3 - 3.6 kgf.m, 23.9 - 26.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
- Inspect fuel leakage after high pressure fuel pipe assembly.
