Fuel Line (Delivery Pipe → Injector)

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

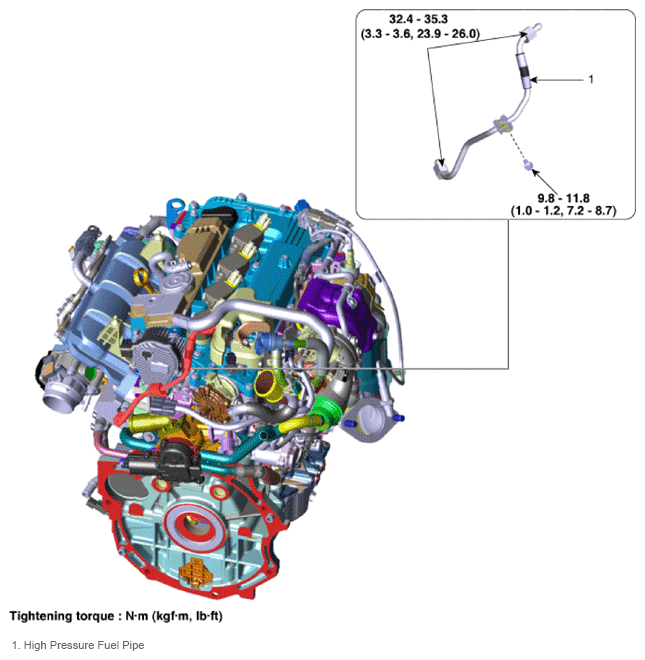

Fig 1: Fuel Line Components Location With Torque Specification (Delivery Pipe - Injector)
G14957152Courtesy of KIA MOTORS AMERICA, INC.
