Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

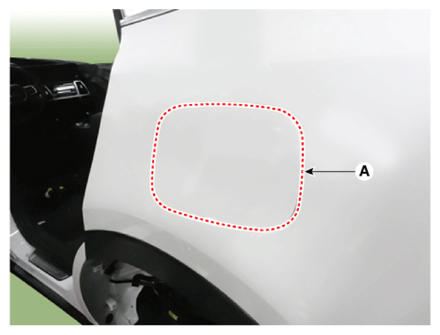

Open the fuel filler door (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")

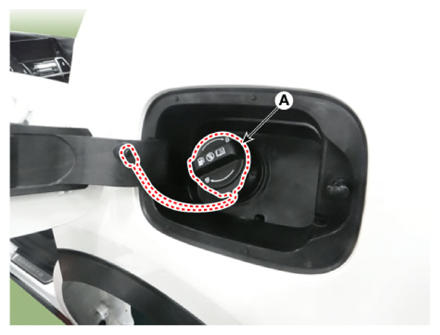

Open the fuel filler cap (A) by turning it in the counter clockwise.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear wheel guard [LH].
(Refer to Body - "REAR WHEEL GUARD ")

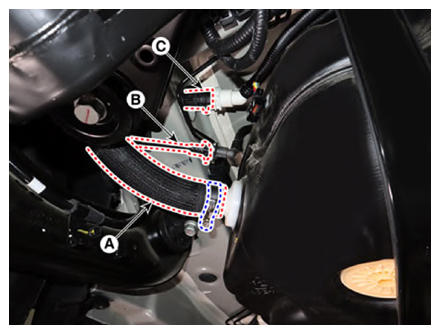

Separate the hoses.
1. Fuel filler hose
2. Leveling hose
3. Ventilation hose
Courtesy of KIA MOTORS AMERICA, INC.

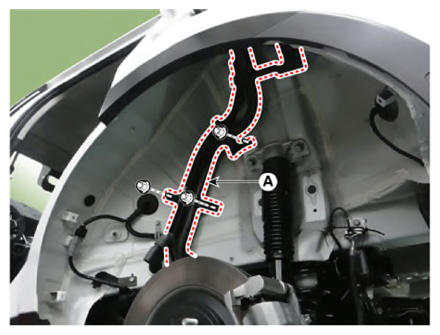

Remove the filler-neck assembly (A) by removing the mounting nut.
Tightening torque:

7.9 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
