Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

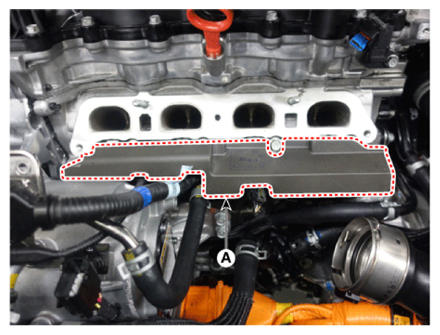

Remove the injector foam (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the high pressure fuel pipe.
(Refer to Fuel Delivery System - "FUEL LINE ")
Remove the Hybrid Starter Generator (HSG).
(Refer to Hybrid Motor System - "HYBRID STARTER GENERATOR ")

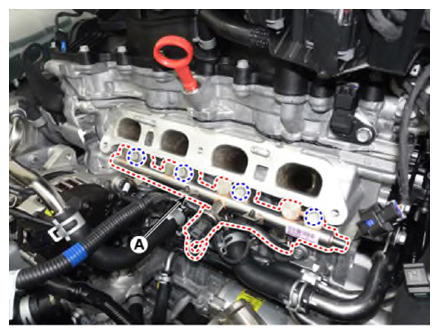

Remove the delivery pipe And injector (A) by removing the bolts.
Tightening torque:

24.5 - 27.5 N.m (2.5 - 2.8 kgf.m, 18.1 - 20.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

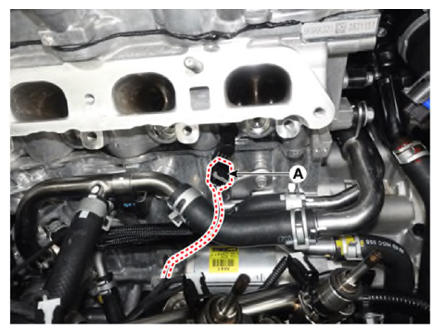

Disconnect the Engine Coolant Temperature Sensor (ECTS) #1 connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

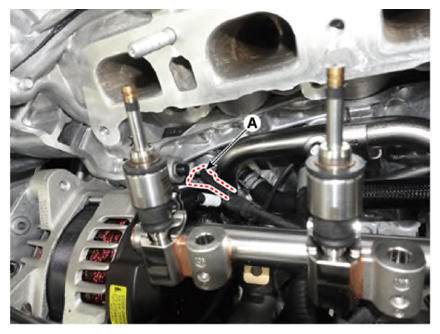

Disconnect the ECTS #2 connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

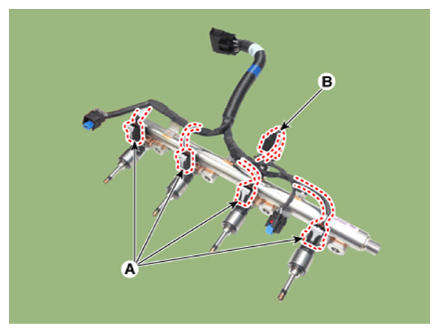

Disconnect the injector connectors (A) and Rail Pressure Sensor (RPS) connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

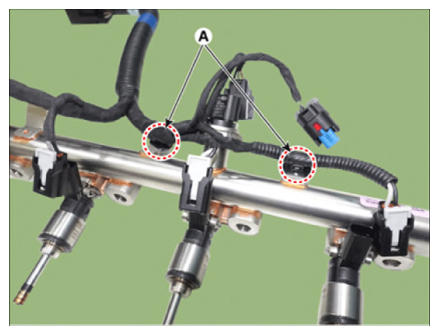

Remove the wiring fixing clips (A).

Courtesy of KIA MOTORS AMERICA, INC.

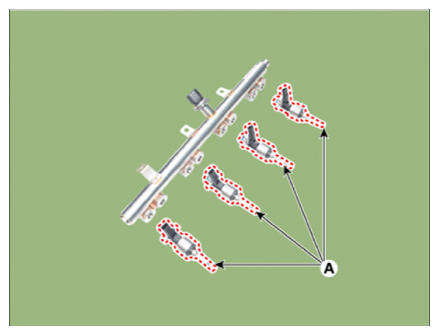

Remove the injector (A) from the delivery pipe.

Courtesy of KIA MOTORS AMERICA, INC.

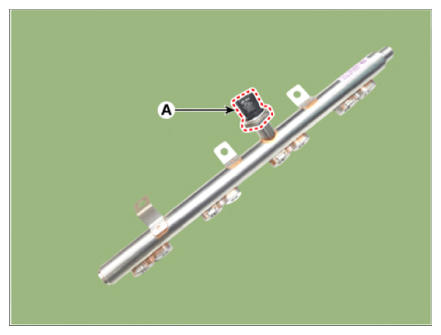

Remove the RPS (A) from the delivery pipe.

Courtesy of KIA MOTORS AMERICA, INC.
