Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install in the reverse order of removal.
    NOTE:

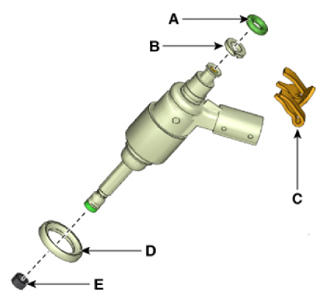

    • Note the followings when mounting the injector on the delivery pipe:
      1. When reusing the injector, replace it with a new one.
        1. O-Ring
        2. Support disc
        3. Clip
        4. Rubber washer

          (When installing the rubber washer, mount the steel plate faced to the cylinder mount and the rubber plate faced to the injector body.)

        5. Sealing

          (Refer to Injector - "REPLACEMENT ")

          G14957073Courtesy of KIA MOTORS AMERICA, INC.
      2. Apply engine oil to the injector O-ring.
      3. Don't apply engine oil to the sealing.
    • Do not reuse the high pressure fuel pipe.
      G14957074Courtesy of KIA MOTORS AMERICA, INC.
    • Be careful not to transform the shape of the high pressure fuel pipe.
    • Torque wrench should not be tilt when you tighten the nut.
    • Inspect fuel leakage after high pressure fuel pipe assembly.
    • Do not use already used bolt again.
