Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")

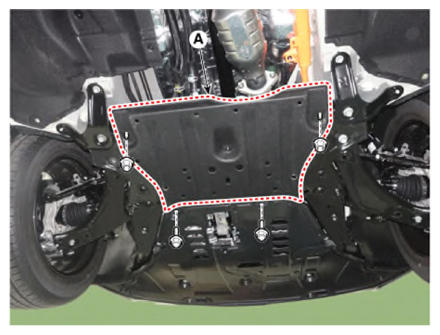

Remove the rear engine room under cover (A) after removing the mounting bolts and nuts.
Tightening torque:

7.9 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

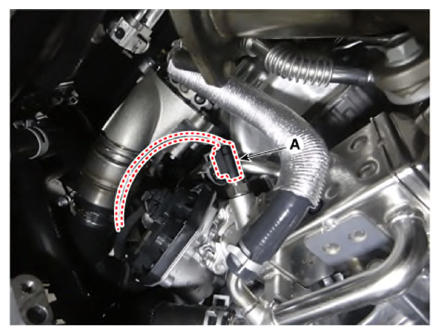

Disconnect the EGR temperature sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

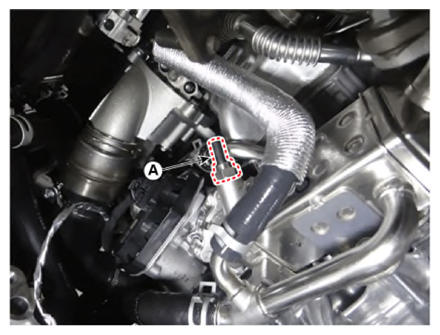

Remove the EGR temperature sensor (A).
Tightening torque:

19.7 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
