Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

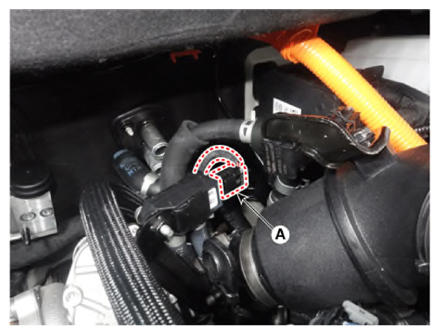

  2. Disconnect the Differential Pressure Sensor (DPS) connector (A).
    G14956869Courtesy of KIA MOTORS AMERICA, INC.

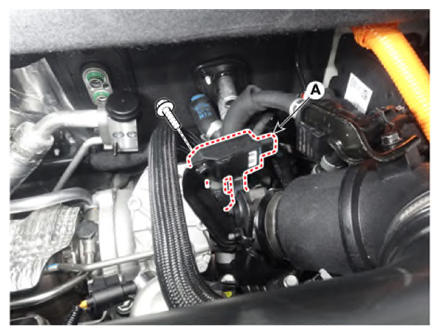

  3. Separate the DPS (A) from the bracket after removing the mounting bolt.

    Tightening torque:

    6.9 - 10.7 N.m (0.7 - 1.1 kgf.m, 5.0 - 17.3 lb.ft)

    G14956870Courtesy of KIA MOTORS AMERICA, INC.

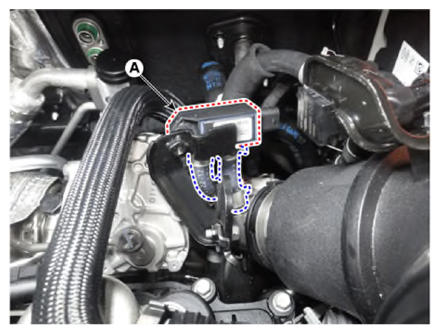

  4. Remove the DPS (A) after disconnecting the differential pressure hoses.
    G14956871Courtesy of KIA MOTORS AMERICA, INC.
